Echo CSG-680 S/N: C23220001001 - C23220999999 Cut Off Saw

Model: CSG-680 S/N: C23220001001 - C23220999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

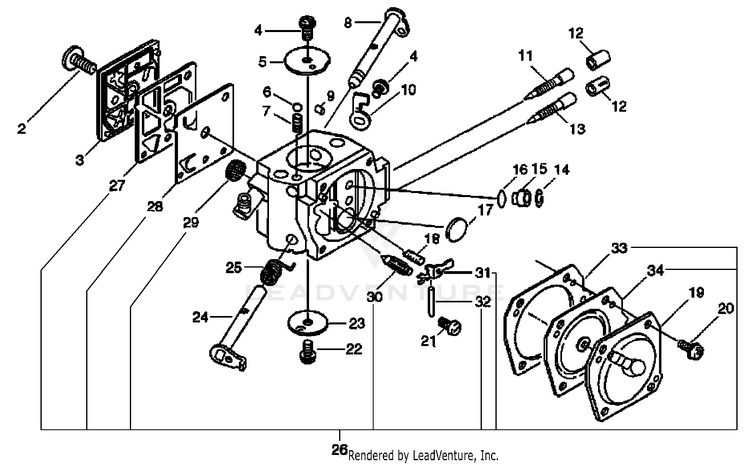

Carburetor

...
...
1
CARBURETOR ECH-A021000731
...
2
SCREW ECH-12311003930
...
3
COVER, FUEL PUMP ECH-12312419830
...
4
SCREW ECH-12311438830
...
5
VALVE, CHOKE ECH-12313232430
...
6
BALL, CHOKE FRICTION ECH-12313610630
...
7
SPRING ECH-12313510630
...
8
SHAFT, CHOKE ECH-12313119830
...
9
PLUG, FRICTION ECH-12317815030
...
10
STOP, THROTTLE ECH-12315630830
...
11
NEEDLE, HIGH SPEED ECH-12312032631
...
12
CAP, LIMITER ECH-P003000010
...
13
NEEDLE, MIXTURE ECH-12311802261
...
14
RING, RETAINING ECH-12316910630
...
15
JET ECH-12318406060
...
16
O-RING ECH-12318305960
...
17
PLUG, WELCH ECH-12314610631
...
18
SPRING, METERING LEVER ECH-12312239830
...
19
COVER, METERING DIAPHRAGM ECH-P003000000
...
20
SCREW ECH-12313002960
...
21
SCREW, METERING LEVER PIN ECH-12313903930
...
22
SCREW ECH-P003002380
...
23
VALVE, THROTTLE ECH-12313216130
...
24
SHAFT, THROTTLE ECH-12311732630
...
25
SPRING, THROTTLE RETURN ECH-12311316130
...
26
REPAIR KIT ECH-P033000000
...
27
GASKET, FUEL PUMP ECH---
...
28
DIAPHRAGM, PUMP ECH---
...
------------------
SCREEN, FUEL INLET ECH---
...
30
VALVE, INLET NEEDLE ECH---
...
31
LEVER, METERING ECH---
...
32
PIN, METERING LEVER ECH---
...
33
GASKET, METERING ECH---
...
34
DIAPHRAGM ASSY ECH---
...
...
...
...
...
