Echo CSG-680 S/N: C23220001001 - C23220999999 Cut Off Saw

Model: CSG-680 S/N: C23220001001 - C23220999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

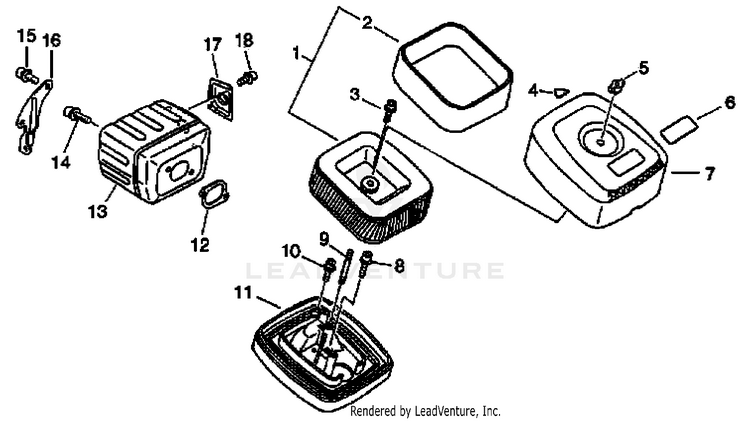

Air Cleaner, Muffler

...
...
1
FILTER, AIR ECH-13030507062
...
2
FILTER, AIR ECH-13030525061
...
3
BOLT - 5x16 ECH-13043507060
...
4
LABEL ECH-89005707060
...
5
NUT ECH-13032205261
...
6
LABEL - MODEL CSG-680 ECH-X503005551
...
7
COVER, AIR FILTER ECH-13031306061
...
8
SCREW 5x25 ECH-90023805025
...
9
BOLT 5 ECH-13071206061
...
10
SCREW 5x16 ECH-90023805016
...
11
CASE, AIR FILTER ECH-A225000130
...
12
GASKET, EXHAUST ECH-14551032431
...
13
MUFFLER ECH-A300000781
...
14
BOLT 5x20 ECH-90016205020
...
15
BOLT 5x12 ECH-90016205012
...
16
BRACKET, MUFFLER ECH-14571132430
...
17
GUIDE, EXHAUST ECH-A313000460
...
18
BOLT 4x10 ECH-90016204010
...
...
...
...
...
