Echo CSG-680 S/N: C23220001001 - C23220999999 Cut Off Saw

Model: CSG-680 S/N: C23220001001 - C23220999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

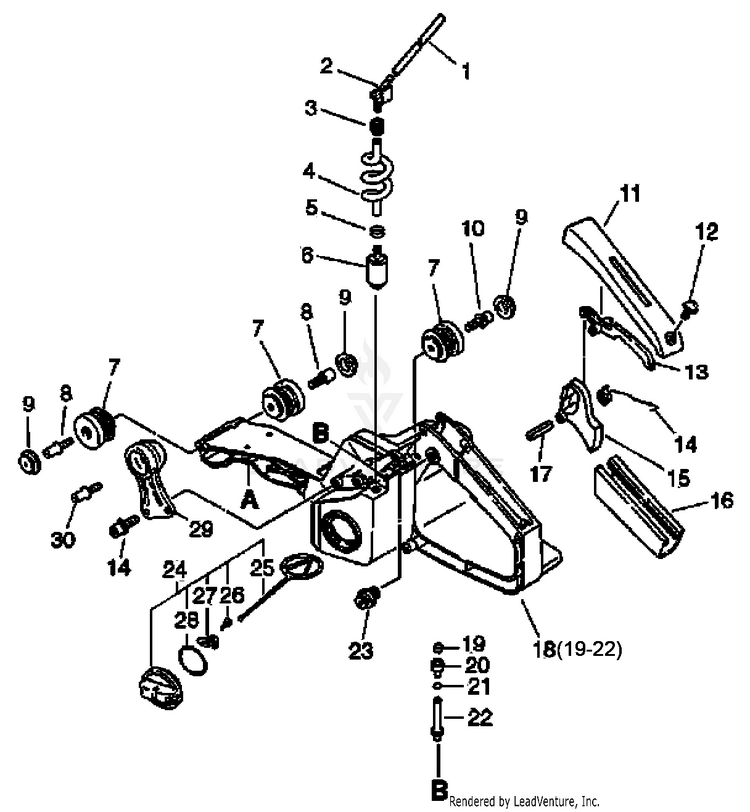

Fuel System, Throttle Control

...
...
1
PIPE, FUEL 3x6x100 ECH-43721720761
...
2
CONNECTOR, PIPE ECH-13201133031
...
3
GROMMET ECH-13211501462
...
4
PIPE, FUEL ECH-13201030831
...
5
CLIP 6.5 MM ECH-V490001230
...
6
FILTER, FUEL ECH-A369000460
...
7
CUSHION ECH-10092232430
...
8
SCREW 5 ECH-10091532530
...
9
CAP, CUSHION ECH-10091819830
...
10
BOLT 5x14 ECH-90016205014
...
11
COVER, HANDLE ECH-35115535431
...
12
SCREW 4x14 ECH-90023804014
...
13
LEVER, THROTTLE LOCKOUT ECH-17809037930
...
14
SPRING, THROTTLE RETURN ECH-17804319830
...
15
TRIGGER, THROTTLE ECH-C450000281
...
16
GRIP, HANDLE ECH-35111119831
...
17
PIN, SPRING 5x25 MM ECH-90034250025
...
18
HANDLE, REAR ECH-P021007482
...
19
VENT ASSY ECH-13130056431
...
20
HOLDER, VENT ECH-13132840630
...
21
CLIP 6.5 MM ECH-V490001230
...
22
PIPE, VENT ECH-13131232430
...
23
LATCH, THROTTLE ECH-P100011150
...
24
CAP ASSY, FUEL ECH-P021037420
...
25
CONNECTOR, CAP L= 60 MM ECH-A365000050
...
26
SCREW, TAPPING 3x8 ECH-90024603008
...
27
RETAINER, CONNECTOR ECH-13105019830
...
28
O-RING 29 ECH-V581000600
...
29
CUSHION ECH-10092132431
...
30
SCREW 5 ECH-10091533930
...
...
...
...
...
