Echo CSG-680 S/N: C02004001001 - C02004999999 Cut Off Saw

Model: CSG-680 S/N: C02004001001 - C02004999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

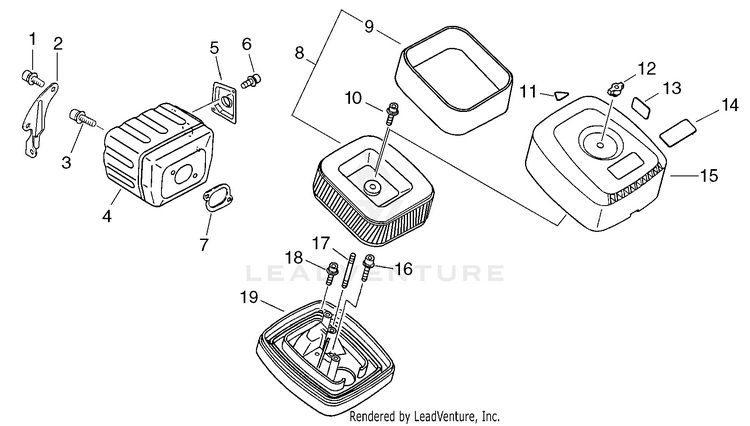

Air FIlter, Exhaust

...
...
1
BOLT 5x14 ECH-90016205014
...
2
BRACKET, MUFFLER ECH-14571132430
...
3
BOLT 5x20 ECH-90016205020
...
4
MUFFLER ECH-A300000781
...
5
GUIDE, EXHAUST ECH-A313000460
...
6
BOLT 4x10 ECH-90016204010
...
7
GASKET, EXHAUST ECH-14551032431
...
8
FILTER, AIR ECH-13030507062
...
9
FILTER, AIR ECH-13030525061
...
10
BOLT - 5x16 ECH-13043507060
...
11
LABEL ECH-89035507060
...
12
NUT ECH-13032205261
...
13
LABEL - CAUTION ECH-89034407060
...
14
LABEL - MODEL CSG-680 ECH-X503005170
...
15
COVER, AIR FILTER ECH-13031320860
...
16
SCREW 5x25 ECH-90023805025
...
17
BOLT 5 ECH-13071206061
...
18
SCREW 5x16 ECH-90023805016
...
19
CASE, AIR FILTER ECH-A225000120
...
...
...
...
...
