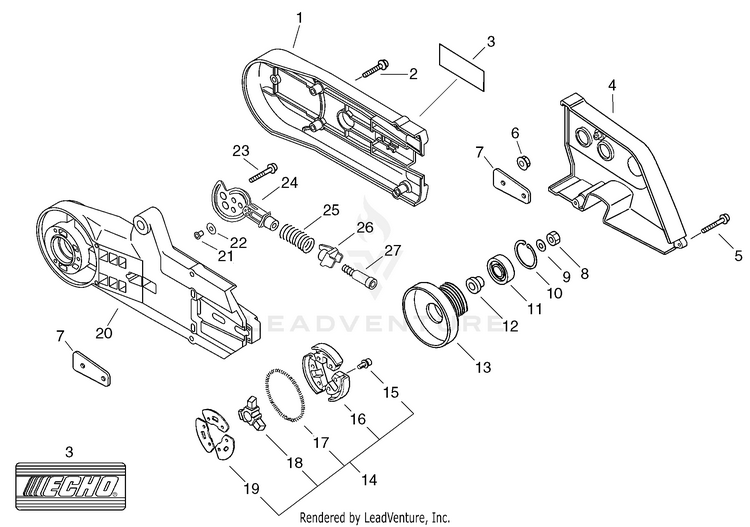

Echo CSG-680 S/N: C02004001001 - C02004999999 Cut Off Saw

Model: CSG-680 S/N: C02004001001 - C02004999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

Arm Cover, Clutch

...
...
1
COVER, GEAR ECH-C361000030
...
2
SCREW 5x25 ECH-90023805025
...
3
LABEL - ECHO ECH-89011807060
...
4
COVER, V-BELT ECH-61111120860
...
5
SCREW 5x25 ECH-90023805025
...
6
NUT, FLANGE M8x1.25 ECH-V265000200
...
7
SPACER, ARM ECH-61111706060
...
8
NUT 8 LH ECH-61032003830
...
9
WASHER ECH-90060300008
...
10
RING, SNAP 28 ECH-90070200028
...
11
BEARING, BALL ECH-9404206001
...
12
COLLAR - 10 ECH-V356000260
...
13
DRUM, CLUTCH ECH-A556000310
...
14
CLUTCH ASSY ECH-17500006061
...
15
BOLT 4x6 ECH-90010504006
...
16
CLUTCH SHOE SET (3PCS) ECH-17500232431
...
17
SPRING, CLUTCH ECH-17501832430
...
18
BOSS, CLUTCH ECH-17501616130
...
19
PLATE, CLUTCH ECH-17501916130
...
20
ARM, CUTTER ECH-C360000002
...
21
COLLAR ECH-10491508260
...
22
WASHER, SPRING 8.5x16x0.5 ECH-17504956030
...
23
BOLT 5x25 ECH-90016205025
...
24
ADJUSTER, BLADE ECH-P021006650
...
25
SPRING, ADJUSTER ECH-61121605260
...
26
HOLDER, SPRING ECH-V455000030
...
27
BOLT 5 ECH-V203000070
...
...
...
...
...
