Echo CSG-680 S/N: C02004001001 - C02004999999 Cut Off Saw

Model: CSG-680 S/N: C02004001001 - C02004999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

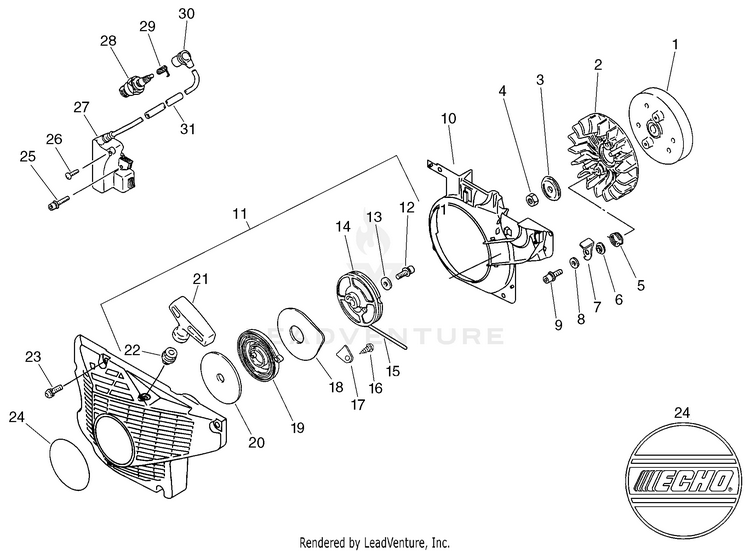

Ignition, Starter

...
...
1
FLYWHEEL ECH-15680032631
...
2
FAN ECH-10152132330
...
3
WASHER 8.2x31x0.8 ECH-10014319830
...
4
NUT M8 ECH-90050000008
...
5
SPRING, RETURN ECH-17723419832
...
6
SPACER ECH-17724707060
...
7
RATCHET SET ECH-P021009872
...
8
WASHER 5.5x12x0.8 ECH-90060300005
...
9
BOLT 5x14 ECH-90016205014
...
10
COVER, FAN ECH-A172000130
...
11
STARTER ASSY ECH-P021004210
...
12
BOLT 5x14 ECH-90016205014
...
13
WASHER 5.5x12x0.8 ECH-90060300005
...
14
REEL, ROPE ECH-17721507060
...
15
ROPE, STARTER ECH-17722606060
...
16
SCREW 4x8 ECH-90025304008
...
17
PLATE, EYE ECH-43314415130
...
18
PLATE, STARTER ECH-17722107060
...
19
SPRING, RECOIL ECH-17722002834
...
20
PLATE, STARTER ECH-17722102830
...
21
GRIP, STARTER ECH-17722830832
...
22
GUIDE, ROPE ECH-17722707060
...
23
BOLT 5x20 ECH-90016205020
...
24
LABEL - ECHO ECH-89011817930
...
25
BOLT 4x20 ECH-90016204020
...
26
SCREW 4x8 ECH-90024204008
...
27
COIL, IGNITION ECH-15660132632
...
28
SPARK PLUG - BPMR7A ECH-15901010230
...
29
TERMINAL, SPARK PLUG ECH-15901103432
...
30
CAP, SPARK PLUG ECH-15901203433
...
31
PIPE ECH-15661119830
...
...
...
...
...
