Echo CSG-680 S/N: C02004001001 - C02004999999 Cut Off Saw

Model: CSG-680 S/N: C02004001001 - C02004999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

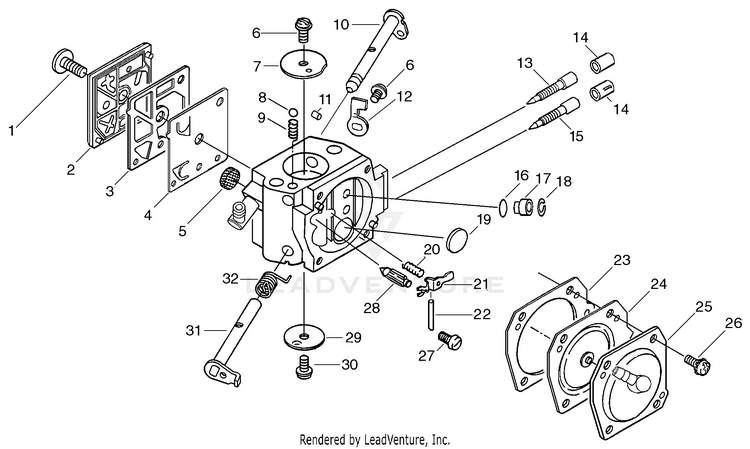

Carburetor

...
...
xx
CARBURETOR - HDA-216 ECH-A021000730
...
1
SCREW ECH-12311003930
...
2
COVER, FUEL PUMP ECH-12312419830
...
3
GASKET, FUEL PUMP ECH-12312512330
...
4
DIAPHRAGM, FUEL PUMP ECH-12311212330
...
5
SCREEN, FUEL INLET ECH-12312610631
...
6
SCREW ECH-12311438830
...
7
VALVE, CHOKE ECH-12313232430
...
8
BALL, CHOKE FRICTION ECH-12313610630
...
9
SPRING ECH-12313510630
...
10
LEVER, CHOKE ECH-P003000590
...
11
PLUG, FRICTION ECH-12317815030
...
12
STOP, THROTTLE ECH-12315630830
...
13
NEEDLE, HIGH SPEED ECH-12312032631
...
14
CAP, LIMITER ECH-P003000010
...
15
NEEDLE, MIXTURE ECH-12311802261
...
16
O-RING ECH-12318305960
...
17
JET ECH-12318406060
...
18
RING, RETAINING ECH-12316910630
...
19
PLUG, WELCH ECH-12314610631
...
20
SPRING, METERING LEVER ECH-12312239830
...
21
LEVER, METERING ECH-12312318330
...
22
PIN, METERING LEVER ECH-12313803930
...
23
GASKET, METERING DIAPHRAGM ECH-12314016131
...
24
DIAPHRAGM, METERING ECH-12314116131
...
25
COVER, METERING DIAPHRAGM ECH-P003000000
...
26
SCREW ECH-12313002960
...
27
SCREW, METERING LEVER PIN ECH-12313903930
...
28
VALVE, INLET NEEDLE ECH-12313719830
...
29
VALVE, THROTTLE ECH-12313216130
...
30
SCREW ECH-12311405260
...
31
SHAFT, THROTTLE ECH-12311732630
...
32
SPRING, THROTTLE RETURN ECH-12311316130
...
...
...
...
...
