Echo CSG-6700 Type 1E Cut Off Saw

Model: CSG-6700 Type 1E

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

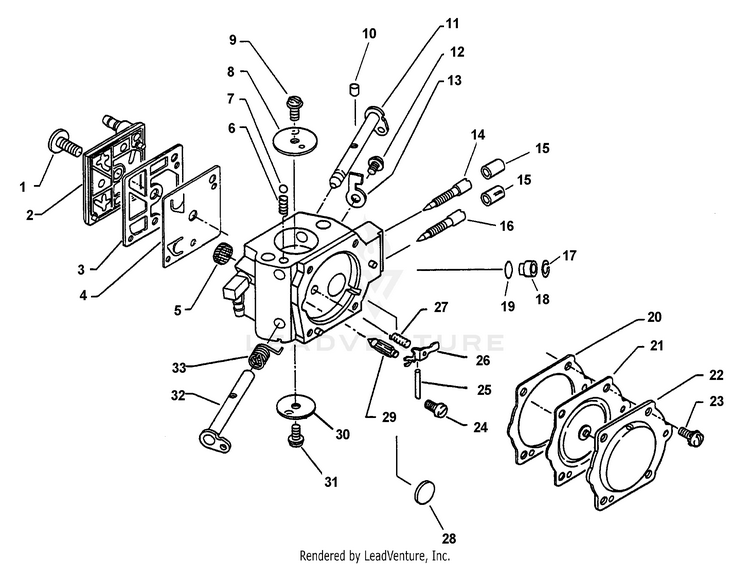

Carburetor

...
...
xx
CARBURETOR - HDA-166A INCLUDES THE FOLLOWING: ECH-12300063331
...
1
SCREW ECH-12311003930
...
2
COVER, FUEL PUMP ECH-12312419830
...
3
GASKET, PUMP (INCLUDED IN P/N P003000030, REPAIR KIT & P/N 12310117330, DIAPHRAGM/GASKET KIT) ECH---
...
4
DIAPHRAGM, PUMP (INCLUDED IN P/N P003000030, REPAIR KIT & P/N 12310117330, DIAPHRAGM/GASKET KIT) ECH---
...
5
STRAINER (INCLUDED IN P/N P003000030, REPAIR KIT) ECH---
...
6
SPRING ECH-12313510630
...
7
BALL, CHOKE FRICTION ECH-12313610630
...
8
VALVE, CHOKE ECH-12313232430
...
9
SCREW ECH-12311403930
...
10
PLUG, FRICTION ECH-12317815030
...
11
SHAFT, CHOKE ECH-12313119830
...
12
SCREW ECH-12311403930
...
13
STOP, THROTTLE ECH-12315630830
...
14
NEEDLE, HIGH SPEED ECH-12312032631
...
15
CAP, LIMITER ECH-12315139230
...
16
NEEDLE, MIXTURE ECH-12311802261
...
17
RING, RETAINING (INCLUDED IN P/N P003000030, REPAIR KIT) ECH---
...
------------------
JET - 42 (INCLUDED IN P/N P003000030, REPAIR KIT) ECH---
...
19
O-RING (INCLUDED IN P/N P003000030, REPAIR KIT) ECH---
...
20
GASKET, DIAPHRAGM (INCLUDED IN P/N P003000030, REPAIR KIT & P/N 12310117330, DIAPHRAGM/GASKET KIT) ECH---
...
21
DIAPHRAGM, METERING (INCLUDED IN P/N P003000030, REPAIR KIT & P/N 12310117330, DIAPHRAGM/GASKET KIT) ECH---
...
22
COVER, METERING DIAPHRAGM ECH-12314217330
...
23
SCREW ECH-12313002960
...
24
SCREW, METERING LEVER PIN (INCLUDED IN P/N P003000030, REPAIR KIT) ECH---
...
25
PIN, METERING LEVER (INCLUDED IN P/N P003000030, REPAIR KIT) ECH---
...
26
LEVER, METERING (INCLUDED IN P/N P003000030, REPAIR KIT) ECH---
...
27
SPRING, METERING LEVER (INCLUDED IN P/N P003000030, REPAIR KIT) ECH---
...
28
PLUG, WELCH ECH-12314610631
...
29
VALVE, INLET NEEDLE (INCLUDED IN P/N P003000030, REPAIR KIT) ECH---
...
30
VALVE, THROTTLE ECH-12313216130
...
31
SCREW ECH-12311405260
...
32
SHAFT, THROTTLE ECH-12311732630
...
33
SPRING, THROTTLE RETURN ECH-12311316130
...
xx
REPAIR KIT, CARBURETOR ECH-P003000030
...
xx
GASKET / DIAPHRAGM KIT ECH-12310117330
...
...
...
...
...
