Echo CSG-6700 Type 1E Cut Off Saw

Model: CSG-6700 Type 1E

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

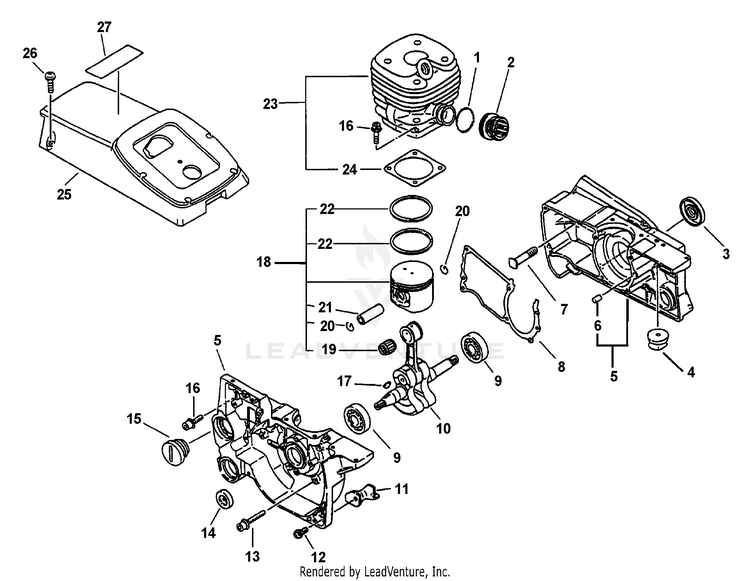

Engine, Crankcase, Cylinder, Piston

...
...
1
BAND ECH-13051630830
...
2
ADAPTOR, INTAKE ECH-13051032430
...
3
SEAL, OIL ECH-10021232430
...
4
CUSHION ECH-10025132430
...
5
CRANKCASE Includes ITEMS 3, 6-9, 14, 15 ECH-10020407065
...
6
PIN, LOCATING 5x10 ECH-10021502830
...
7
BOLT ECH-43301106060
...
8
GASKET, CRANKCASE ECH-10024232430
...
9
BEARING, BALL 6202 ECH-90081036202
...
10
CRANKSHAFT ASSY ECH-10010006061
...
11
CUSHION ECH-10091732430
...
12
BOLT 5x14 ECH-90016205014
...
13
BOLT M5x35 ECH-90016205035
...
14
SEAL, OIL ECH-10021219830
...
15
CAP, OIL TANK ECH-43601307061
...
16
BOLT 5x20 ECH-90016205020
...
17
KEY, WOODRUFF ECH-10014230830
...
18
PISTON KIT Includes ITEMS 19-22 ECH-10000032432
...
19
BEARING, NEEDLE ECH-10001232430
...
20
RING, SNAP ECH-10001500230
...
21
PIN, PISTON ECH-10001332430
...
22
RING, PISTON ECH-10001132431
...
23
CYLINDER KIT Includes ITEM 24 ECH-10100132431
...
24
GASKET, CYLINDER ECH-10101032431
...
25
COVER, CYLINDER ECH-10150607061
...
26
SCREW 5x20 ECH-90023805020
...
27
LABEL - CAUTION ECH-89017807060
...
...
...
...
...
