Echo CSG-6700 Type 1E Cut Off Saw

Model: CSG-6700 Type 1E

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?

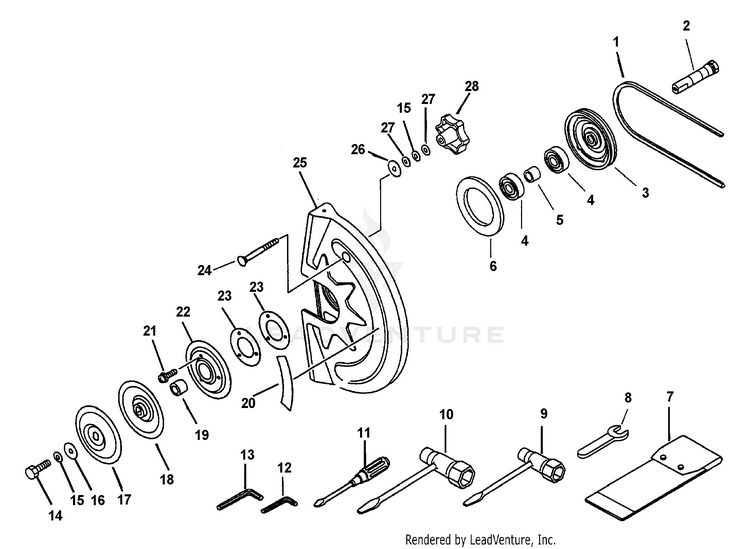

product name

Blade Cover, Belt

...
...
1
BELT ECH-61121206060
...
2
SHAFT ECH-61101007060
...
3
PULLEY ECH-61100705260
...
4
BEARING, BALL 6203 ECH-90081206203
...
5
SPACER ECH-61101106060
...
6
PLATE ECH-68902405260
...
7
BAG, TOOL ECH-X698000170
...
8
WRENCH, OPEN END 10 MM ECH-89501505260
...
9
T-WRENCH 13x19x180 ECH-89541006961
...
10
T-WRENCH 17x19 L200 ECH-X602000020
...
11
SCREWDRIVER, SLOTTED ECH-89581100130
...
12
WRENCH, ALLEN 3 MM ECH-X605000090
...
13
WRENCH, ALLEN 4 MM ECH-A605000100
...
14
BOLT ECH-V206000160
...
15
SCREW ECH-900605-00010
...
16
WASHER ECH-61101905260
...
17
FLANGE, CUTTER ECH-61101507062
...
18
FLANGE, CUTTER ECH-61101407062
...
19
SPACER ECH-61101107060
...
20
LABEL - CAUTION ECH-89018807060
...
21
SCREW 4x10 ECH-90024204010
...
22
PLATE ECH-68901305260
...
23
WASHER ECH-68902505260
...
24
BOLT ECH-68902006060
...
25
COVER, BLADE ECH-68901007061
...
26
WASHER ECH-68902305260
...
27
WASHER 10.5x18x1.6 ECH-90060000010
...
28
KNOB ECH-68901505260
...
...
...
...
...
