Echo CSG-6700 S/N: 005531 - 999999 Cut Off Saw

Model: CSG-6700 S/N: 005531 - 999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

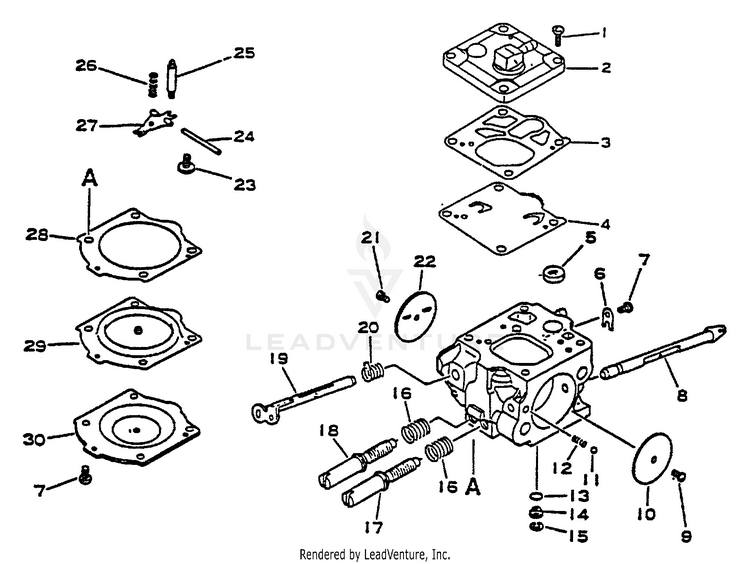

Carburetor

...
...
xx
CARBURETOR HDA-85A ECH-12300006061
...
1
SCREW ECH-12311010630
...
2
COVER, FUEL PUMP ECH-12312419830
...
3
GASKET, PUMP Use Carburetor Repair Kit, P/N 12310006060 & Gasket/Diaphragm Kit, P/N 12310117330 ECH---
...
4
DIAPHRAGM, PUMP Use Carburetor Repair Kit, P/N 12310006060 & Gasket/Diaphragm Kit, P/N 12310117330 ECH---
...
5
STRAINER Use Carburetor Repair Kit, P/N 12310006060 ECH---
...
6
RING, RETAINING ECH-12312710630
...
7
SCREW Use Carburetor Repair Kit, P/N 12310006060 ECH---
...
8
SHAFT, CHOKE ECH-12313119830
...
9
SCREW ECH-12311403930
...
10
VALVE, CHOKE ECH-12313232430
...
11
BALL, CHOKE ECH-12313610631
...
12
SPRING, CHOKE ECH-12313510631
...
13
O-RING Use Carburetor Repair Kit, P/N 12310006060 ECH---
...
------------------
JET - 42 Use Carburetor Repair Kit, P/N 12310006060 ECH---
...
15
WASHER Use Carburetor Repair Kit, P/N 12310006060 ECH---
...
16
SPRING Use Carburetor Repair Kit, P/N 12310006060 ECH---
...
17
NEEDLE, HIGH SPEED ECH-12312006060
...
18
NEEDLE, IDLE ECH-12311818331
...
19
SHAFT, THROTTLE ECH-12311732630
...
20
SPRING, THROTTLE RETURN ECH-12311316130
...
21
SCREW ASSY ECH-12315410630
...
22
VALVE, THROTTLE ECH-12313216130
...
23
SCREW, METERING LEVER PIN Use Carburetor Repair Kit, P/N 12310006060 ECH---
...
24
PIN, METERING LEVER Use Carburetor Repair Kit, P/N 12310006060 ECH---
...
25
VALVE, INLET NEEDLE Use Carburetor Repair Kit, P/N 12310006060 ECH---
...
26
SPRING, METERING LEVER Use Carburetor Repair Kit, P/N 12310006060 ECH---
...
27
LEVER, METERING Use Carburetor Repair Kit, P/N 12310006060 ECH---
...
28
GASKET, METERING Use Carburetor Repair Kit, P/N 12310006060 & Gasket/Diaphragm Kit, P/N 12310117330 ECH---
...
29
DIAPHRAGM, METERING Use Carburetor Repair Kit, P/N 12310006060 & Gasket/Diaphragm Kit, P/N 12310117330 ECH---
...
30
COVER, METERING DIAPHRAGM ECH-12314217330
...
30
REPAIR KIT ECH-12310006060
...
30
GASKET / DIAPHRAGM KIT ECH-12310117330
...
...
...
...
...
