Echo CSG-6700 S/N: 002601 - 005530 Cut Off Saw

Model: CSG-6700 S/N: 002601 - 005530

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

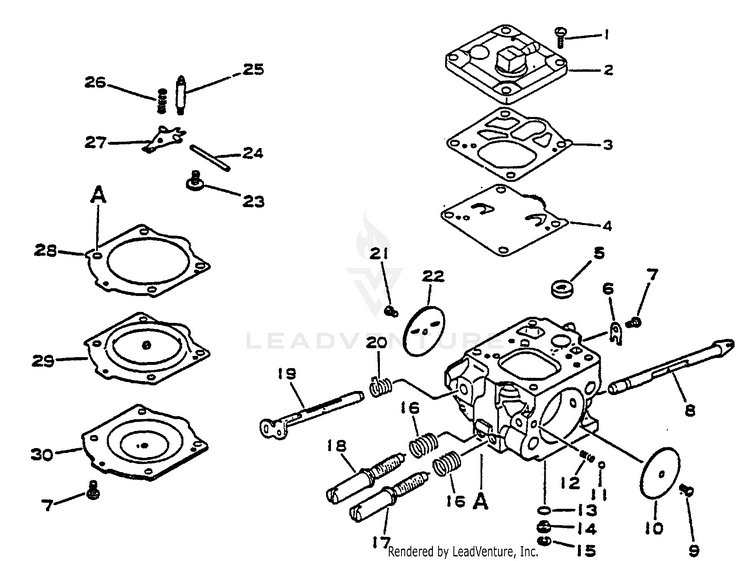

Carburetor

...
...
xx
CARBURETOR HDA-85A ECH-12300006061
...
1
SCREW ECH-12311010630
...
2
COVER, FUEL PUMP ECH-12312419830
...
3
GASKET, PUMP USE CARBURETOR REPAIR KIT P/N 123100606 OR GASKET/DIAPHRAGM KIT P/N 123111733 ECH---
...
4
DIAPHRAGM, PUMP USE CARBURETOR REPAIR KIT P/N 123100606 OR GASKET/DIAPHRAGM KIT P/N 123111733 ECH---
...
5
STRAINER USE CARBURETOR REPAIR KIT P/N 123100606 ECH---
...
6
RING, RETAINING ECH-12312710630
...
7
SCREW USE CARBURETOR REPAIR KIT P/N 123100606 ECH---
...
8
SHAFT, CHOKE ECH-12313119830
...
9
SCREW ECH-12311403930
...
10
VALVE, CHOKE ECH-12313232430
...
11
BALL, CHOKE ECH-12313610631
...
12
SPRING, CHOKE ECH-12313510631
...
13
O-RING USE CARBURETOR REPAIR KIT P/N 123100606 ECH---
...
------------------
JET - 42 USE CARBURETOR REPAIR KIT P/N 123100606 ECH---
...
15
WASHER USE CARBURETOR REPAIR KIT P/N 123100606 ECH---
...
16
SPRING USE CARBURETOR REPAIR KIT P/N 123100606 ECH---
...
17
NEEDLE, HIGH SPEED ECH-12312006060
...
18
NEEDLE, IDLE ECH-12311818331
...
19
SHAFT, THROTTLE ECH-12311732630
...
20
SPRING, THROTTLE RETURN ECH-12311316130
...
21
SCREW ASSY ECH-12315410630
...
22
VALVE, THROTTLE ECH-12313216130
...
23
SCREW, METERING LEVER PIN USE CARBURETOR REPAIR KIT P/N 123100606 ECH---
...
24
PIN, METERING LEVER USE CARBURETOR REPAIR KIT P/N 123100606 ECH---
...
25
VALVE, INLET NEEDLE USE CARBURETOR REPAIR KIT P/N 123100606 ECH---
...
26
SPRING, METERING LEVER USE CARBURETOR REPAIR KIT P/N 123100606 ECH---
...
27
LEVER, METERING USE CARBURETOR REPAIR KIT P/N 123100606 ECH---
...
28
GASKET, METERING ECH---
...
29
DIAPHRAGM, METERING USE CARBURETOR REPAIR KIT P/N 123100606 OR GASKET/DIAPHRAGM KIT P/N 123111733 ECH---
...
30
COVER, METERING DIAPHRAGM ECH-12314217330
...
...
...
...
...
