Echo CSG-6700 S/N: 002601 - 005530 Cut Off Saw

Model: CSG-6700 S/N: 002601 - 005530

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

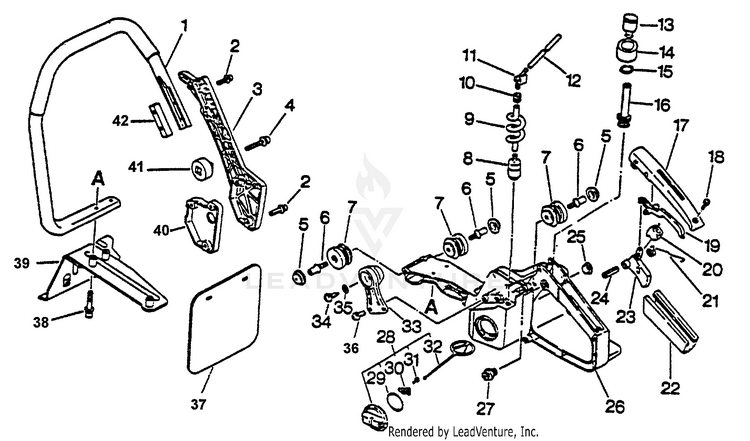

Handles, Fuel System

...
...
1
HANDLE, FRONT ECH-35160606060
...
2
SCREW 5x35 ECH-90023805035
...
3
SUPPORTER, FRONT HNDL. KIT INCLUDES 10090532331 CUSHION ECH-35160332430
...
4
SCREW 5x30 ECH-90023805030
...
5
CAP, CUSHION ECH-10091819830
...
6
SCREW 5 ECH-10091532530
...
7
CUSHION ECH-10092232430
...
8
FILTER, FUEL ECH-A369000460
...
9
PIPE, FUEL ECH-13201030831
...
10
GROMMET ECH-13211501462
...
11
CONNECTOR, PIPE ECH-13201133031
...
12
PIPE ECH-43721116431
...
13
VENT ASSY ECH-13130056431
...
14
HOLDER, VENT ECH-13132840630
...
15
CLIP 5.5 ECH-13011100530
...
16
PIPE, VENT ECH-13131232430
...
17
COVER, HANDLE ECH-35115530131
...
18
SCREW 4x14 ECH-90023804014
...
19
LEVER, THROTTLE LOCKOUT ECH-17809019830
...
20
CUSHION,?THROTTLE ECH-17807332430
...
21
SPRING, THROTTLE RETURN ECH-17804319830
...
22
GRIP, HANDLE ECH-35111119831
...
23
TRIGGER, THROTTLE - BLACK ECH-17801019830
...
24
PIN, SPRING 5x25 MM ECH-90034250025
...
25
PLUG ECH-16391130130
...
26
HANDLE, REAR ECH-35110307062
...
27
LATCH, THROTTLE ECH-P100011150
...
28
CAP ASSY, FUEL INCLUDES ITEMS 29 - 32 ECH-P021037420
...
29
O-RING 29 ECH-90072000029
...
30
RETAINER, CONNECTOR ECH-13105019830
...
31
SCREW, TAPPING 3x8 ECH-90024603008
...
32
CONNECTOR, CAP L= 60 MM ECH-A365000050
...
33
CUSHION ECH-10092132431
...
34
SCREW 5x14 ECH-90025305014
...
35
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
36
SCREW 5x14 ECH-90023805014
...
37
SHIELD ECH-30511506061
...
38
BOLT 5x30 ECH-90016205030
...
39
FIXTURE, HANDLE ECH-35161107060
...
40
SPACER ECH-35161207061
...
41
SPACER ECH-35163006060
...
42
BRACKET ECH-30511406060
...
...
...
...
...
