Echo CSG-6700 S/N: 001001 - 002600 Cut Off Saw

Model: CSG-6700 S/N: 001001 - 002600

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

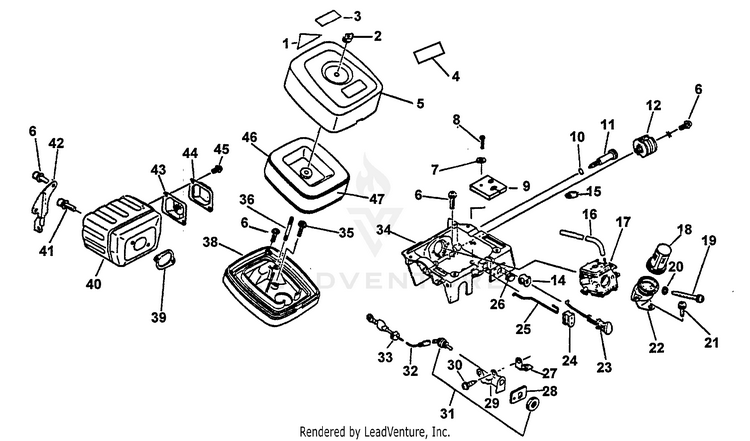

Intake, Exhaust, Air Cleaner

...
...
1
LABEL ECH-89005707060
...
2
NUT ECH-13032205261
...
3
LABEL - CAUTION ECH-89016007060
...
4
LABEL - MODEL ECH-89011207060
...
5
COVER, AIR FILTER ECH-13031306061
...
6
BOLT 5x14 ECH-90016205014
...
7
WASHER ECH-43316219930
...
8
PIN, COTTER 3x18 ECH-90030030018
...
9
PAD, FOAM ECH-13033106060
...
10
O-RING 7 ECH-90072020007
...
11
SCREW, IDLE ADJUST - GRAY ECH-12901307061
...
12
CUSHION ECH-10090532331
...
14
GROMMET, CHOKE ECH-17881033331
...
15
GROMMET ECH-12901032430
...
16
PIPE, IMPULSE ECH-13011019831
...
17
CARBURETOR HDA-85A ECH-12300006061
...
18
SCREEN, FILTER ECH-13082106060
...
19
SCREW 5x53 ECH-90025205053
...
20
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
21
SCREW 5x14 ECH-90025305014
...
22
ELBOW ECH-13051806060
...
23
ROD, CHOKE ECH-17851007060
...
24
GROMMET, THROTTLE ROD ECH-17811432630
...
25
ROD, THROTTLE ECH-C454000001
...
26
PLUG ECH-13132932330
...
27
PLATE, GROUND ECH-15663532530
...
28
LABEL - SWITCH ECH-89015730130
...
29
BRACKET, SWITCH ECH-16381030130
...
30
SCREW 5x10 ECH-90025205010
...
31
SWITCH, ON-OFF ECH-16340030830
...
32
LEAD - GROUND ECH-16202132530
...
33
GROMMET ECH-15611404920
...
34
CASE, CARBURETOR ECH-13030607062
...
35
BOLT 5x25 ECH-90016205025
...
36
BOLT 5 ECH-13071206061
...
38
CASE, AIR FILTER ECH-13031406061
...
39
GASKET, EXHAUST ECH-14551032431
...
40
MUFFLER ECH-A300000781
...
41
BOLT 5x20 ECH-90016205020
...
42
BRACKET, MUFFLER ECH-14571132430
...
43
SCREEN, SPARK ARRESTER ECH-14586232630
...
44
COVER, MUFFLER ECH-14586106062
...
45
BOLT 4x10 ECH-90016204010
...
46
FILTER ASSY, AIR ECH-13030506060
...
47
FILTER, AIR ECH-13030525061
...
...
...
...
...
