Echo CSG-670 Type 1E S/N: 001001 - 999999 Cut Off Saw

Model: CSG-670 Type 1E S/N: 001001 - 999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

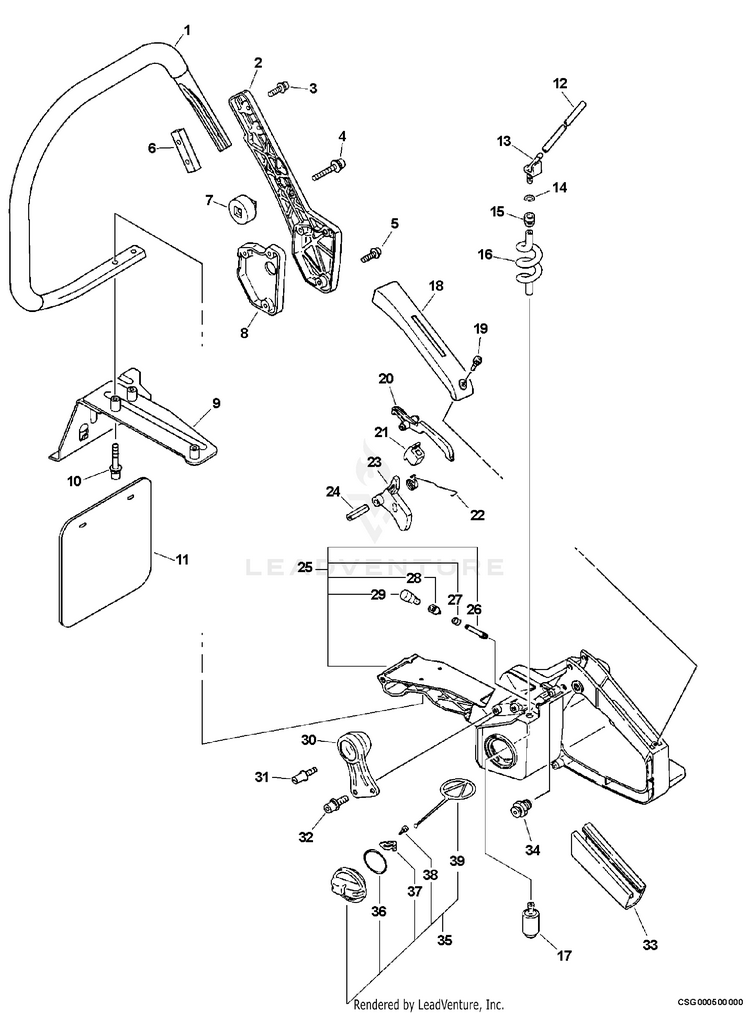

Handles, Fuel System

...
...
1
HANDLE, FRONT ECH-35160606060
...
2
BRACKET, HANDLE ECH-35161607060
...
3
SCREW 5x20 ECH-90023805020
...
4
SCREW 5x30 ECH-90023805030
...
5
SCREW 5x35 ECH-90023805035
...
6
BRACKET ECH-30511406060
...
7
SPACER ECH-35163006060
...
8
SPACER ECH-35161207061
...
9
FIXTURE, HANDLE ECH-35161107060
...
10
BOLT 5x30 ECH-90016205030
...
11
SHIELD ECH-30511506061
...
12
PIPE, FUEL 3x6x100 RePower BULK OPTION: 90015 ECH-43721720761
...
13
CONNECTOR, PIPE ECH-13201133031
...
14
CLIP 6.5 MM ECH-V490001230
...
15
GROMMET ECH-13211501462
...
16
PIPE, FUEL ECH-13201030831
...
17
FILTER, FUEL Included In 88990007060 - Top End Overhaul Kit ECH-A369000460
...
18
COVER, HANDLE ECH-35115535431
...
19
SCREW 4x14 ECH-90023804014
...
20
LEVER, THROTTLE LOCKOUT ECH-17809037930
...
21
CUSHION,?THROTTLE ECH-17807332430
...
22
SPRING, THROTTLE RETURN ECH-17804319830
...
23
TRIGGER, THROTTLE - ORANGE ECH-17801038130
...
24
PIN, SPRING 5x25 MM ECH-90034250025
...
25
HANDLE, REAR ECH-35110307062
...
26
PIPE, VENT ECH-13131232430
...
27
CLIP 5.5 ECH-13011100530
...
28
HOLDER, VENT ECH-13132840630
...
29
VENT ASSY Included In 88990007060 - Top End Overhaul Kit ECH-A356000031
...
30
CUSHION ECH-10092132431
...
31
SCREW 5 ECH-10091533930
...
32
BOLT 5x14 ECH-90016205014
...
33
GRIP, HANDLE ECH-35111119831
...
34
LATCH, THROTTLE ECH-P100011150
...
35
CAP ASSY, FUEL INCLUDES ITEMS 36-39 ECH-P021037420
...
36
O-RING 29 ECH-90072020029
...
37
RETAINER, CONNECTOR ECH-13105019830
...
38
SCREW, TAPPING 3x8 ECH-90024603008
...
39
CONNECTOR, CAP L= 60 MM ECH-A365000050
...
...
...
...
...
