Echo CSG-670 S/N: 001001 - 999999 Cut Off Saw

Model: CSG-670 S/N: 001001 - 999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

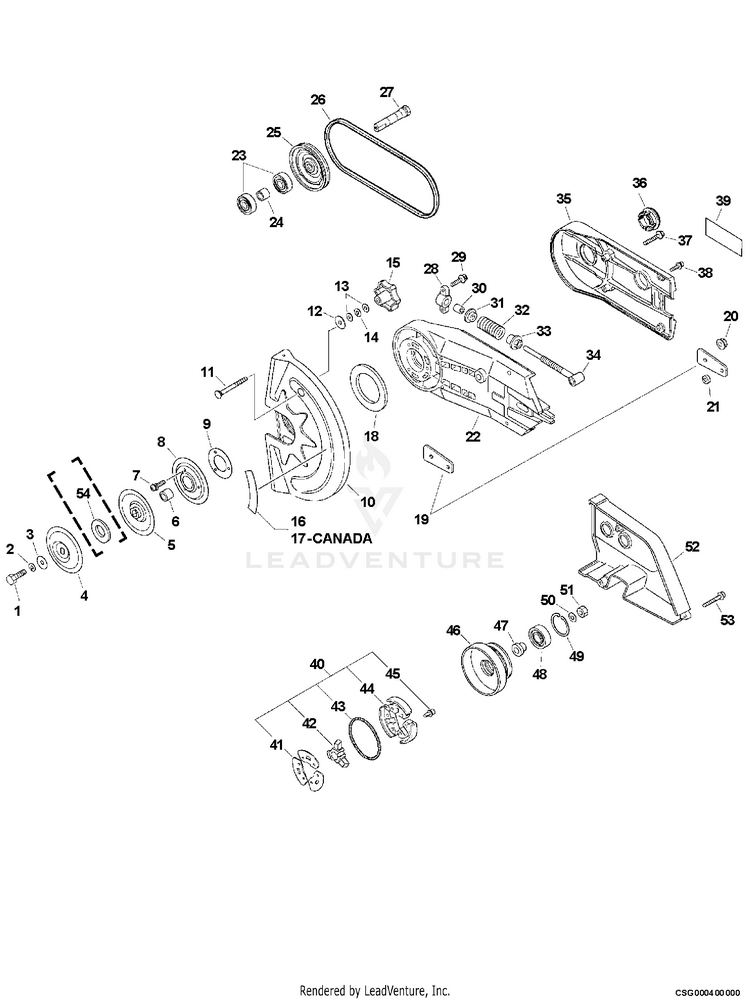

Blade Cover, Arm Cover, Belt, Clutch

...
...
1
BOLT ECH-V206000160
...
2
SCREW ECH-900605-00010
...
3
WASHER ECH-61101905260
...
4
FLANGE, CUTTER ECH-61101507062
...
5
FLANGE, CUTTER ECH-61101407062
...
6
SPACER ECH-61101107060
...
7
SCREW 4x10 ECH-90024204010
...
8
PLATE ECH-C371000000
...
9
WASHER ECH-68902505260
...
10
COVER, BLADE ECH-68901007061
...
11
BOLT ECH-68902006060
...
12
WASHER ECH-68902305260
...
13
WASHER 10.5x18x1.6 ECH-90060000010
...
14
SCREW ECH-900605-00010
...
15
KNOB ECH-68901505260
...
16
LABEL - CAUTION ECH-89018807060
...
17
LABEL ECH-89035207060
...
18
PLATE ECH-68902405260
...
19
SPACER, ARM ECH-61111706060
...
20
NUT, FLANGE M8x1.25 ECH-V265000200
...
21
WASHER ECH-61121906060
...
22
COVER, V-BELT ECH-61111007060
...
23
BEARING, BALL 6203 ECH-90081206203
...
24
SPACER ECH-61101106060
...
25
PULLEY ECH-61100705260
...
26
BELT ECH-61121206060
...
27
SHAFT ECH-61101007060
...
28
SUPPORT ECH-61121305260
...
29
SCREW 5x20 ECH-90023805020
...
30
SPACER, SHAFT ECH-61121805260
...
31
SPRING ECH-61121705260
...
32
SPRING, ADJUSTER ECH-61121605260
...
33
ADJUSTER ECH-61121405260
...
34
ROD, ADJUSTER ECH-61121506060
...
35
COVER, ARM - FRONT ECH-61111107060
...
36
GROMMET ECH-61102105261
...
37
SCREW 5x25 ECH-90023805025
...
38
SCREW 5x20 ECH-90023805020
...
39
LABEL - ECHO ECH-89011807060
...
40
CLUTCH ASSY ECH-17500006061
...
41
PLATE, CLUTCH ECH-17501916130
...
42
BOSS, CLUTCH ECH-17501616130
...
43
SPRING, CLUTCH ECH-17501832430
...
44
CLUTCH SHOE SET (3PCS) ECH-17500232431
...
45
BOLT 4x6 ECH-90010504006
...
46
DRUM, CLUTCH ECH-17500506060
...
47
SPACER ECH-17501302761
...
48
BEARING, BALL 6201 ECH-90081206201
...
49
RING, SNAP 32 ECH-90070200032
...
50
WASHER, CLUTCH ECH-17504403430
...
51
NUT 8 LH ECH-61032003830
...
52
COVER, ARM ECH-61111607060
...
53
SCREW 5x25 ECH-90023805025
...
54
WHEEL ADAPTOR - 25 MM AVAILABLE SEPARATELY ECH-61102207061
...
...
...
...
...
