Echo CSG-670 S/N: 001001 - 999999 Cut Off Saw

Model: CSG-670 S/N: 001001 - 999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

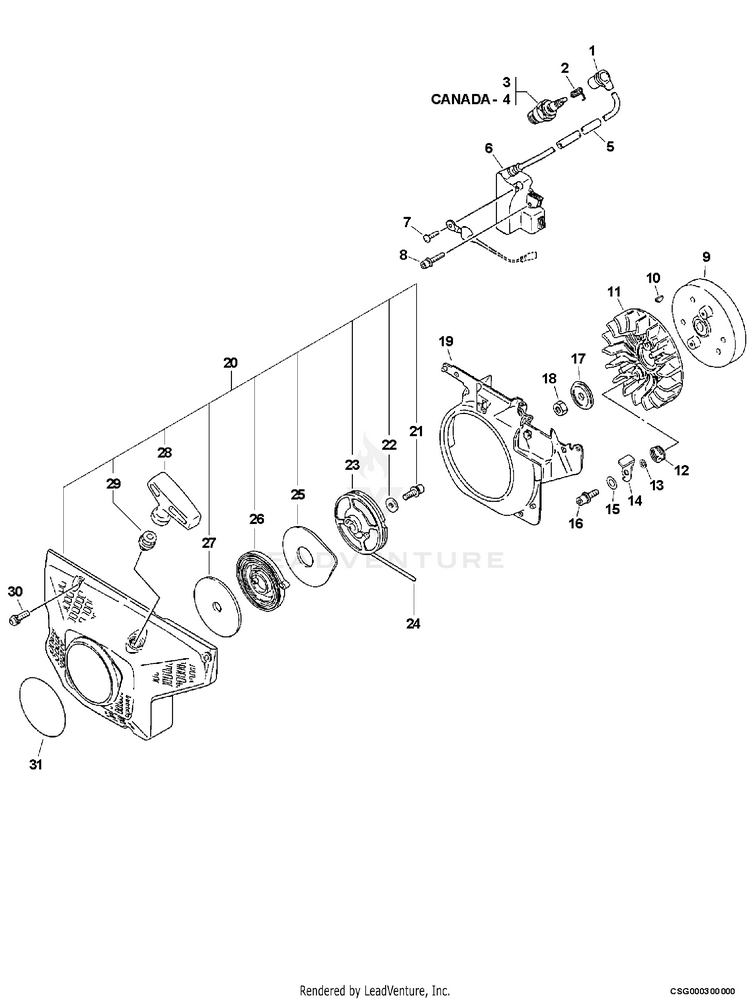

Ignition, Starter

...
...
1
CAP, SPARK PLUG ECH-15901203433
...
2
TERMINAL, SPARK PLUG ECH-15901103432
...
3
SPARK PLUG - BPM6A Included In 88990007060 - Top End Overhaul Kit ECH-15901012330
...
4
SPARK PLUG - RCJ-8Y ECH-15901712330
...
5
PIPE ECH-15661119830
...
6
COIL, IGNITION ECH-15660132632
...
7
SCREW 4x8 ECH-90024204008
...
8
BOLT 4x20 ECH-90016204020
...
9
FLYWHEEL ECH-15680032631
...
10
KEY, WOODRUFF ECH-10014230830
...
11
FAN ECH-10152132330
...
12
SPRING, RETURN ECH-17723419832
...
13
COLLAR 5 ECH-V353000201
...
14
PAWL, STARTER ECH-17721832632
...
15
WASHER 5.5x12x0.8 ECH-90060300005
...
16
BOLT 5x20 ECH-90016205020
...
17
WASHER 8.2x31x0.8 ECH-10014319830
...
18
NUT M8 ECH-90050000008
...
19
COVER, FAN ECH-10153507061
...
20
STARTER ASSY, CS-6700, CSG-670 INCLUDES ITEMS 21-29 ECH-P100006330
...
21
BOLT 5x14 ECH-90016205014
...
22
WASHER 5.5x12x0.8 ECH-90060300005
...
23
REEL, ROPE ECH-17721507060
...
24
ROPE, STARTER RePower BULK OPTION: 99944450000 ECH-17722606060
...
25
PLATE, STARTER ECH-17722107060
...
26
SPRING, RECOIL ECH-17722002834
...
27
PLATE, STARTER ECH-17722102830
...
28
GRIP, STARTER ECH-17722830832
...
29
GUIDE, ROPE ECH-17722707060
...
30
BOLT 5x20 ECH-90016205020
...
31
LABEL - ECHO ECH-89011817930
...
...
...
...
...
