Echo CS-271T S/N: C26513001001 - C26513999999 Chainsaw

Model: CS-271T S/N: C26513001001 - C26513999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

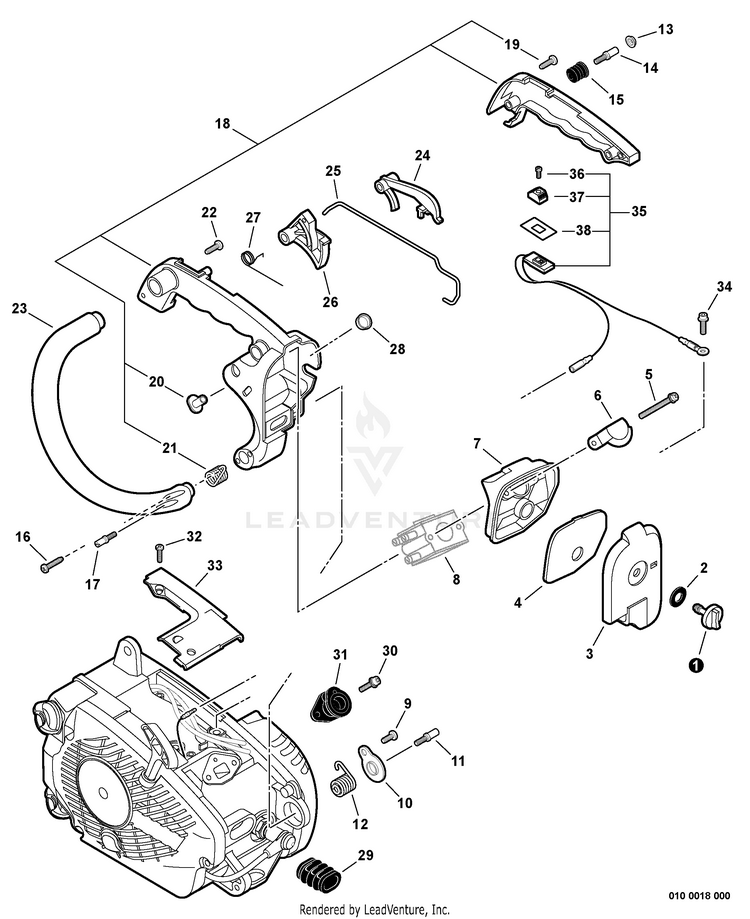

Intake, Control Handle

...
...
1
THUMBSCREW ECH-A235000040
...
2
CUSHION REPLACE IF MISSING ECH-13192502310
...
3
COVER, AIR FILTER ECH-A232000061
...
4
FILTER, AIR ECH-A226000051
...
5
SCREW 5x50 ECH-90023805050
...
6
PLATE, PREVENT ECH-A244000000
...
7
CASE, AIR FILTER ECH-A225000025
...
8
CARBURETOR ECH---
...
9
SCREW 4x12 ECH-90025304012
...
10
PLATE, EYE ECH-V150003810
...
11
BOLT 4x12 ECH-V202000000
...
12
SPRING, COMPRESSION ECH-V450000080
...
13
CAP, CUSHION ECH-10091815130
...
14
BOLT 4x15 ECH-V202000020
...
15
CUSHION 4 ECH-10092139131
...
16
SCREW 4x16 ECH-90025604016
...
17
BOLT 4x12 ECH-V202000000
...
18
HANDLE SET, REAR Includes ITEMS 19-21 ECH-P021001965
...
19
SCREW 4x16 ECH-90025604016
...
20
NUT ECH-13002033330
...
21
SPRING, COMPRESSION ECH-V450000340
...
22
SCREW, TAPPING 5x20 ECH-90025305020
...
23
HANDLE, FRONT ECH-C400000050
...
24
LOCKOUT, THROTTLE ECH-C460000002
...
25
ROD, THROTTLE ECH-C454000051
...
26
TRIGGER, THROTTLE ECH-C450000010
...
27
SPRING, TORSION ECH-V452000010
...
28
COLLAR 14 ECH-V358000021
...
29
BELLOWS, INTAKE ECH-A239000000
...
30
BOLT 4x12 ECH-90016204012
...
31
BELLOWS, INTAKE ECH-A202000001
...
32
SCREW 4x12 ECH-90025304012
...
33
COVER, DUST ECH-A127000021
...
34
BOLT 5x16 ECH-9111005016
...
35
SWITCH, ON-OFF ECH-A440000211
...
36
SCREW 3x10 ECH-90022003010
...
37
KNOB, SWITCH - ORANGE ECH-16341049231
...
38
LABEL - STOP ECH-89015712330
...
...
...
...
...
