Echo CS-271T S/N: C26513001001 - C26513999999 Chainsaw

Model: CS-271T S/N: C26513001001 - C26513999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

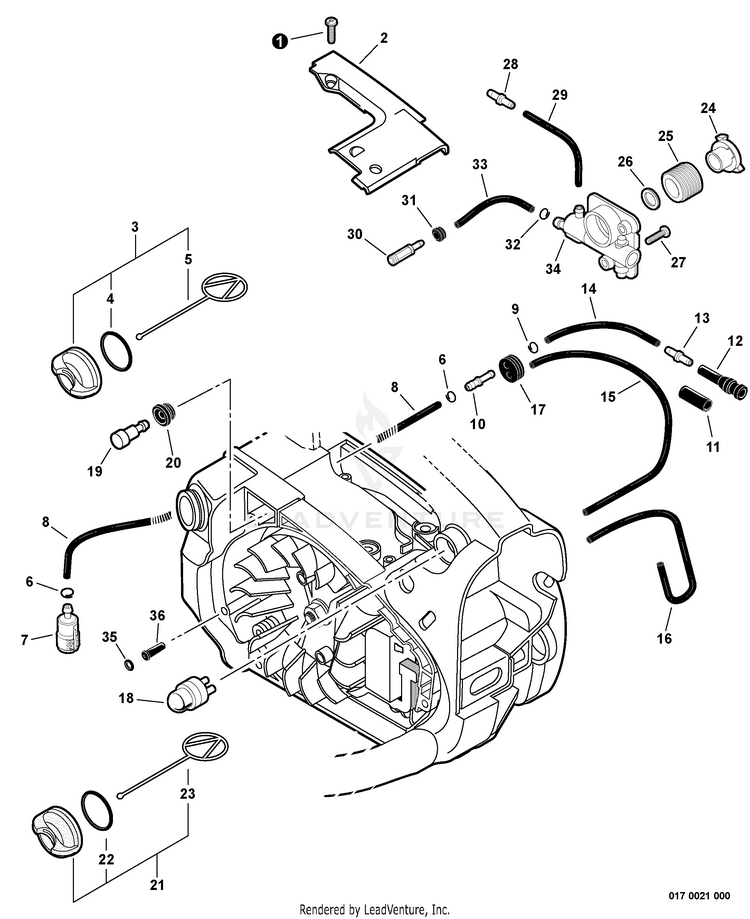

Auto-Oiler, Fuel System

...
...
1
SCREW 4x12 ECH-90025304012
...
2
COVER, DUST ECH-A127000021
...
3
CAP ASSY, FUEL - ORANGE Includes ITEMS 4-5 ECH-P021038080
...
4
O-RING ECH-V581000590
...
5
CONNECTOR, CAP L= 60 MM ECH-A365000050
...
6
CLIP 6 ECH-V490001240
...
7
FILTER, FUEL ECH-A369000470
...
8
PIPE 3x5x75 RePower BULK OPTION: 90014 ECH-V471003811
...
9
CLIP 5 ECH-V490001271
...
10
CONNECTOR, PIPE 5x3.5 ECH-V186000520
...
11
TUBE 6.5x8.5x18 ECH-V475007371
...
12
PIPE, FUEL 10x6x32 ECH-V470001942
...
13
CONNECTOR, PIPE ECH-V186000510
...
14
PIPE 3x5x145 ECH-V471003801
...
15
PIPE 2.4x5x258 ECH-V471001252
...
16
PIPE 2.4x5x153 ECH-V471001261
...
17
GROMMET, FUEL ECH-13211544331
...
18
BULB, PURGE ECH-12318139130
...
19
VENT ASSY ECH-13130056431
...
20
GROMMET, FUEL ECH-V137000001
...
21
CAP ASSY - BLACK Includes ITEMS 22-23 ECH-P021005581
...
22
O-RING 18 ECH-90072000018
...
23
CONNECTOR, CAP L= 60 MM ECH-A365000050
...
24
COLLAR 10 ECH-V356000290
...
25
GEAR, WORM ECH-V652000030
...
26
WASHER 10.5x17.4x1.8 ECH-V308000030
...
27
SCREW 4x12 ECH-90023804012
...
28
CONNECTOR, PIPE ECH-V187000010
...
29
PIPE, 3x6x45 BLACK ECH-13201211961
...
30
FILTER, OIL ECH-P100001900
...
31
GROMMET ECH-13211501462
...
32
CLIP 6.5 MM ECH-V490001230
...
33
PIPE, FUEL 3x6x150 ECH-13201022131
...
34
AUTO-OILER ECH-C022000020
...
35
O-RING S-4 ECH-90072400004
...
36
VENT ASSY ECH-43611413930
...
37
BULK PIPE - 3x5 MM BLACK (4 PIECESx2 M) BLACK ECH-90014
...
...
...
...
...
