Echo CS-271T S/N: C26513001001 - C26513999999 Chainsaw

Model: CS-271T S/N: C26513001001 - C26513999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

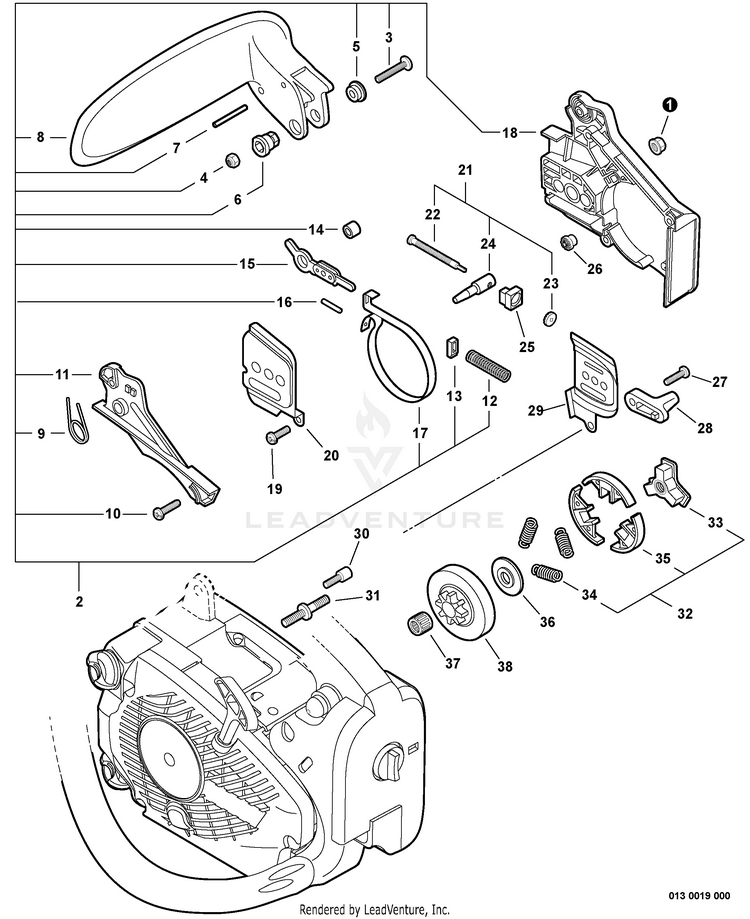

Chain Brake, Clutch S/N: C26513001001 - C26513001100

...
...
1
NUT, FLANGE M8x1.25 ECH-V265000200
...
2
BRAKE ASSY, CHAIN Includes ITEMS 3-18 ECH-P021048911
...
3
SCREW 5x32 ECH-9131805032
...
4
NUT, LOCK M5 ECH-90056250005
...
5
COLLAR 5.3x10x13xL5 ECH-43316739130
...
6
COLLAR 5 ECH-V353000060
...
7
PIN 3x26 ECH-90033030260
...
8
BRAKE, CHAIN ECH-C320000670
...
9
SPRING, TORSION ECH-V452000110
...
10
SCREW 4x12 ECH-90025304012
...
11
COVER, BRAKE ECH-C345000114
...
12
SPRING, COMPRESSION ECH-V450000070
...
13
GUIDE ECH-V376000450
...
14
SPACER 8x12x9 ECH-43311635430
...
15
CONNECTOR, BRAKE ECH-C334000060
...
16
PIN, SPRING 3x9.8 ECH-9305030098
...
17
BAND, BRAKE ECH-C328000020
...
18
GUARD, SPROCKET ECH-C300000173
...
19
SCREW 4x10 ECH-90025304010
...
20
PLATE, GUIDE - OUTER ECH-C305000031
...
21
TENSIONER KIT, CHAIN ECH-P021000063
...
22
SCREW, CHAIN TENSION ECH-V203000021
...
23
GEAR, BEVEL ECH-V651000011
...
24
TENSIONER, CHAIN ECH-C309000030
...
25
COLLAR 8 ECH-V355000800
...
26
GEAR, BEVEL ECH-V651000001
...
27
SCREW, TAPPING 5x20 ECH-90025305020
...
28
CATCHER, CHAIN ECH-43302635430
...
29
PLATE, GUIDE - INNER ECH-C305000023
...
30
BOLT 4x12 ECH-V202000011
...
31
BOLT, STUD 8 ECH-V225000031
...
32
CLUTCH ASSY Includes ITEMS 33-35 ECH-A056000030
...
33
HUB, CLUTCH ECH-A552000020
...
34
SPRING, CLUTCH ECH-V451000150
...
35
SHOE ASSY, CLUTCH ECH-P021001950
...
36
PLATE, CLUTCH ECH-A551000010
...
37
BEARING, NEEDLE 10 ECH-V555000170
...
38
DRUM, CLUTCH ECH-A556000092
...
...
...
...
...
