Echo CS-271T S/N: C26513001001 - C26513999999 Chainsaw

Model: CS-271T S/N: C26513001001 - C26513999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

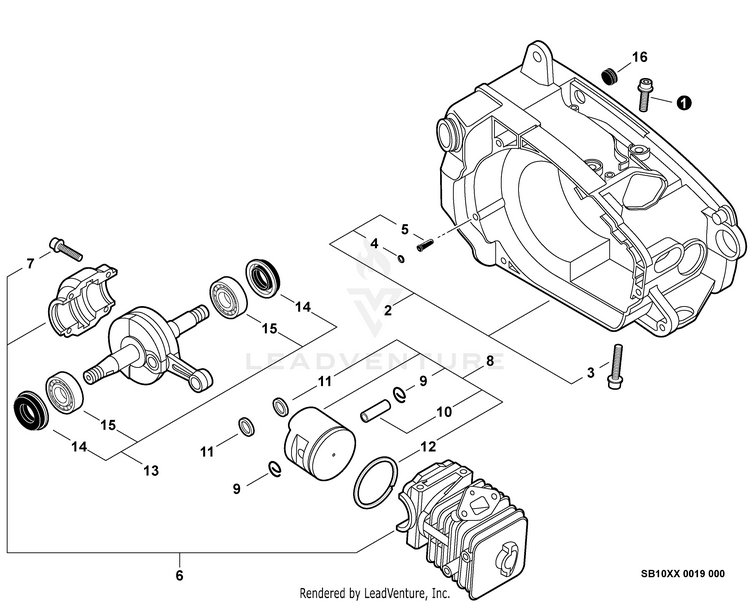

Engine, Engine Cover

...
...
1
BOLT 5x16 ECH-90010605016
...
2
COVER, ENGINE Includes ITEMS 3-5 ECH-P021003439
...
3
BOLT 5x25 ECH-90010605025
...
4
O-RING S-4 ECH-90072400004
...
5
VENT ASSY ECH-43611413930
...
6
CYLINDER KIT Includes ITEM 7 ECH-P021044050
...
7
BOLT 5x22 ECH-90016205022
...
8
PISTON KIT Includes ITEMS 9-11 ECH-P021044060
...
9
RING, SNAP ECH-10001504630
...
10
PIN, PISTON ECH-10001322330
...
11
WASHER, THRUST ECH-10001411520
...
12
RING, PISTON ECH-A101000630
...
13
CRANKSHAFT ASSY Includes ITEMS 14-15 ECH-P021038071
...
14
SEAL, OIL ECH-V505000001
...
15
BEARING, BALL 6001 ECH-90080036001
...
16
PLUG ECH-16391130130
...
...
...
...
...
