Echo CS-271T S/N: C26513001001 - C26513999999 Chainsaw

Model: CS-271T S/N: C26513001001 - C26513999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

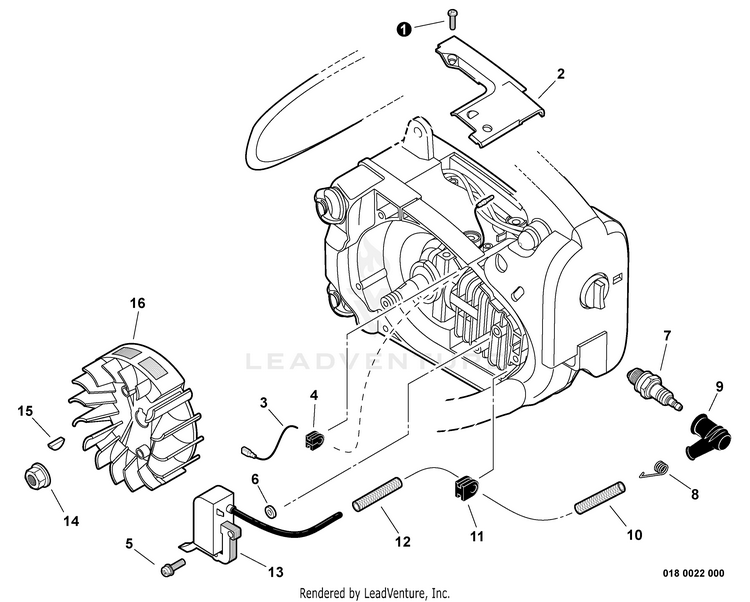

Ignition

...
...
1
SCREW 4x12 ECH-90025304012
...
2
COVER, DUST ECH-A127000021
...
3
LEAD - IGNITION ECH-V485000140
...
4
GROMMET ECH-15611407320
...
5
SCREW 5x18 ECH-90023805018
...
6
WASHER 5.2x12x3 ECH-15011716430
...
7
SPARK PLUG - BPM8Y ECH-15901019830
...
7
SPARK PLUG - BPMR8Y CANADA MODELS ECH-A425000000
...
8
TERMINAL, SPARK PLUG ECH-A426000010
...
9
CAP, SPARK PLUG ECH-A427000013
...
10
TUBE, INSULATOR 7x8.6x47 ECH-V475003550
...
11
GROMMET ECH-15611004920
...
12
TUBE, INSULATOR 7x8.6x30 ECH-V475001900
...
13
COIL, IGNITION ECH-A411001511
...
14
NUT, FLANGE M8 ECH-90051500008
...
15
KEY, WOODRUFF ECH-10014212330
...
16
FLYWHEEL ECH-A409001130
...
...
...
...
...
