Echo CS-2511T S/N: C71915001001 - C71915999999 Chainsaw

Model: CS-2511T S/N: C71915001001 - C71915999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

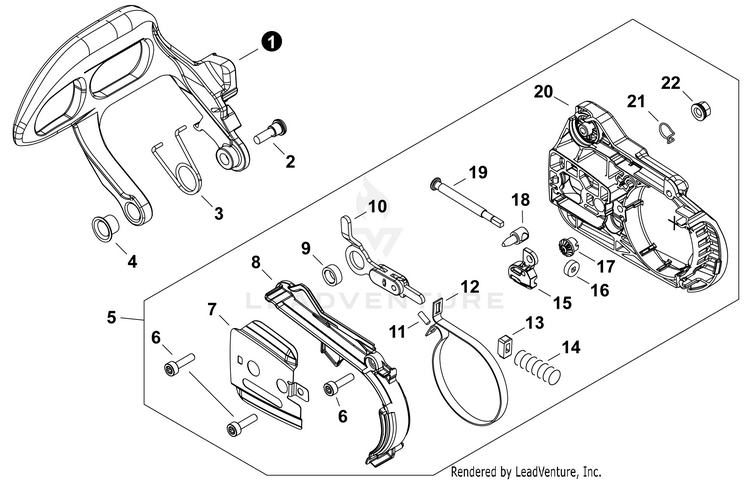

Chain Brake

...
...
1
LEVER, BRAKE ECH-C320000512
...
2
BOLT 5x13 ECH-V203002270
...
3
SPRING, TORSION ECH-V452001660
...
4
COLLAR 10 ECH-V356000780
...
5
SPROCKET GUARD ASSY Includes Items 6-22 ECH-P100002171
...
6
BOLT, TORX 4x12 ECH-V804000000
...
7
PLATE, GUIDE - OUTER ECH-C305000521
...
8
COVER, BRAKE ECH-C345000640
...
9
COLLAR 8 ECH-V355000860
...
10
CONNECTOR, BRAKE ECH-C334000340
...
11
PIN ECH-9305030080
...
12
BAND, BRAKE ECH-C328000330
...
13
GUIDE ECH-V376000450
...
14
SPRING, COMPRESSION ECH-V450002080
...
15
COLLAR 8 ECH-V355000840
...
16
GEAR, BEVEL ECH-V651000011
...
17
GEAR, BEVEL ECH-V651001060
...
18
TENSIONER, CHAIN ECH-C309000110
...
19
BOLT 5 ECH-V203000041
...
20
GUARD, SPROCKET ECH-C300001140
...
21
HOOK ECH-C649000420
...
22
NUT 8 ECH-V265000550
...
...
...
...
...
