Echo CS-2511T S/N: C71915001001 - C71915999999 Chainsaw

Model: CS-2511T S/N: C71915001001 - C71915999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

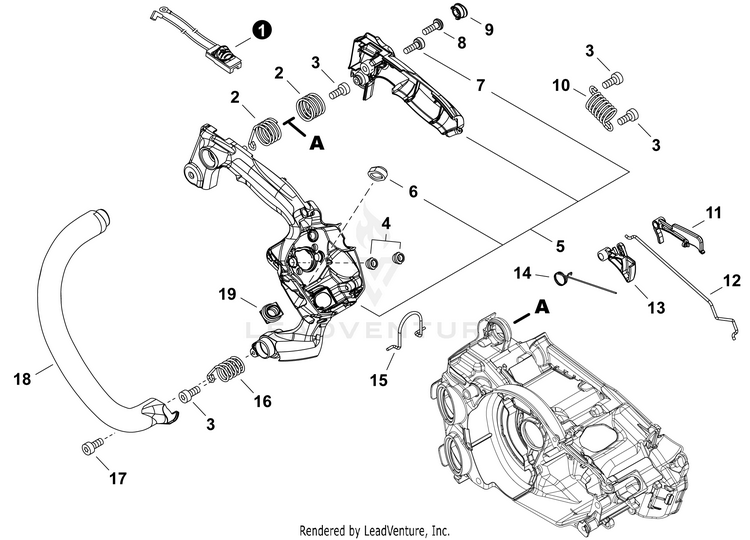

Handles, Throttle Control

...
...
1
SWITCH, ON-OFF ECH-A440002741
...
2
SPRING, COMPRESSION ECH-V450002050
...
3
BOLT, TORX 4x12 ECH-V804000000
...
4
PLUG ECH-V162000771
...
5
HANDLE SET, REAR Includes Items 6-7 ECH-P100002152
...
6
GROMMET, NEEDLE ECH-V131000220
...
7
BOLT, TORX 4x16 ECH-V804000010
...
8
BOLT, TORX 5x16 ECH-V805000000
...
9

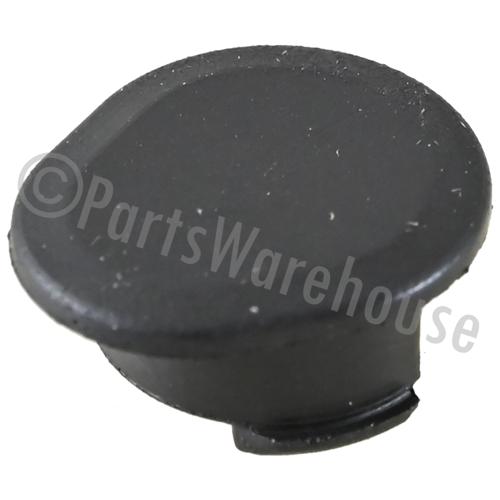

PLUG ECH-V162000760
...
10
SPRING, COMPRESSION ECH-V450002060
...
11
LOCKOUT, THROTTLE ECH-C460000591
...
12
ROD, THROTTLE ECH-C454000540
...
13
TRIGGER, THROTTLE ECH-C450000951
...
14
SPRING, TORSION ECH-V452001650
...
15
RING, HARNESS ECH-C646000132
...
16
SPRING, COMPRESSION ECH-V450002070
...
17
BOLT, TORX 4x16 ECH-V804000010
...
18
HANDLE, FRONT ECH-C400001550
...
19
PIPE, INTAKE ECH-A239000110
...
...
...
...
...
