Echo CS-2511T S/N: C71915001001 - C71915999999 Chainsaw

Model: CS-2511T S/N: C71915001001 - C71915999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

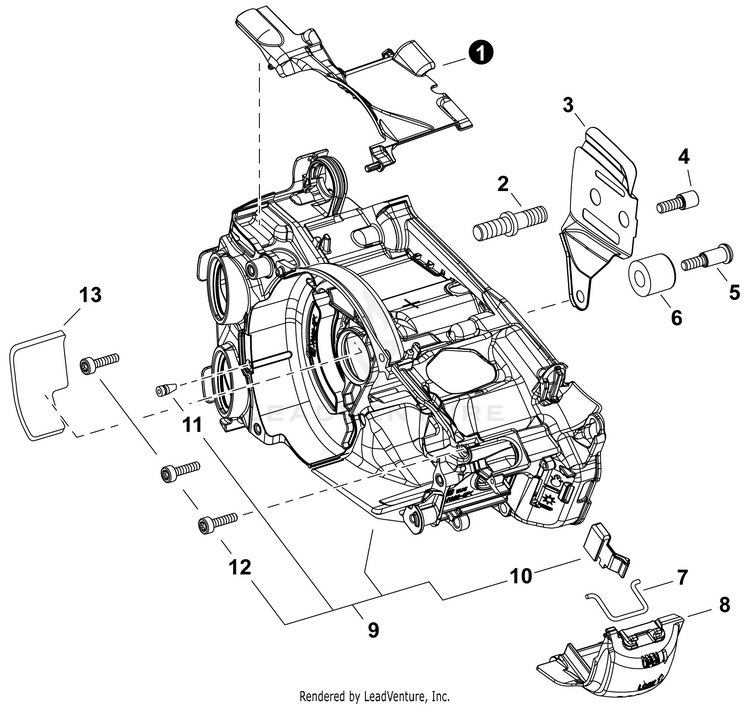

Engine Cover

...
...
1
COVER, DUST ECH-A127000450
...
2
STUD, GUIDE BAR ECH-V225000263
...
3
PLATE, GUIDE - INNER ECH-C305000511
...
4
BOLT 5 ECH-V203002280
...
5
BOLT 5x12 ECH-V203002260
...
6
CATCHER, CHAIN ECH-C310000140
...
7
LATCH, COVER ECH-C649000440
...
8
COVER, SPARK PLUG ECH-A429000200
...
9
ENGINE COVER ASSY Includes Items 10-12 ECH-P021051914
...
10
SHUTTER, AIR ECH-A219000071
...
11
VENT ASSY ECH-43611413930
...
12
BOLT, TORX 4x16 ECH-V804000100
...
13
SHIELD, HEAT ECH-V341000201
...
...
...
...
...
