Echo CS-2511T S/N: C71915001001 - C71915999999 Chainsaw

Model: CS-2511T S/N: C71915001001 - C71915999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

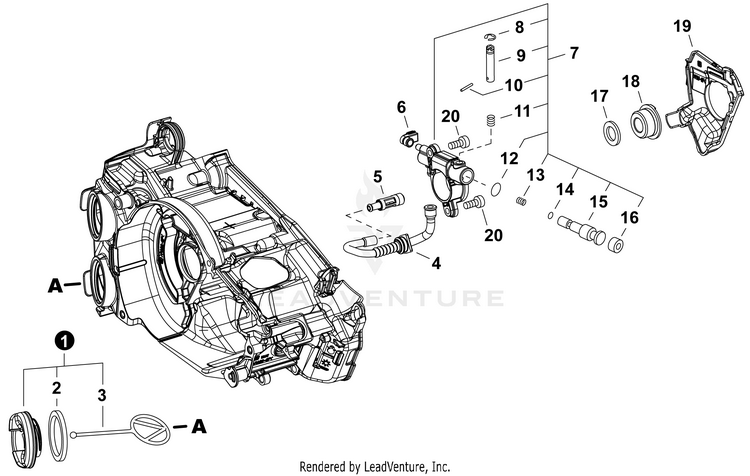

Oil System

...
...
1
CAP ASSY, OIL ECH-A033000390
...
2
GASKET, CAP ECH-V107000180
...
3
CONNECTOR, CAP L= 60 MM ECH-A365000050
...
4
PIPE, OIL ECH-V470002200
...
5
FILTER ASSY, OIL ECH-P021050140
...
6
PIPE, OIL OUTLET ECH-V470002171
...
7
AUTO-OILER ASSY Includes Items 8-16 ECH-C022000211
...
8
E-RING ECH-12312715030
...
9
ADJUSTER, OILER ECH-P003005430
...
10
PIN, SPRING ECH-P003002180
...
11
SPRING ECH-43701537330
...
12
WASHER ECH-P003005420
...
13
SPRING ECH-P003006000
...
14
WASHER ECH-P003005790
...
15
PLUNGER ASSY ECH-P003005990
...
16
CAP, OIL PUMP ECH-43706238330
...
17
WASHER 10.5x17.4x1.8 ECH-V308000030
...
18
GEAR, WORM ECH-V652000230
...
19
COVER, OILER ECH-C236000150
...
20
BOLT, TORX 4x12 ECH-V804000050
...
...
...
...
...
