Echo CS-2511T S/N: C71915001001 - C71915999999 Chainsaw

Model: CS-2511T S/N: C71915001001 - C71915999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

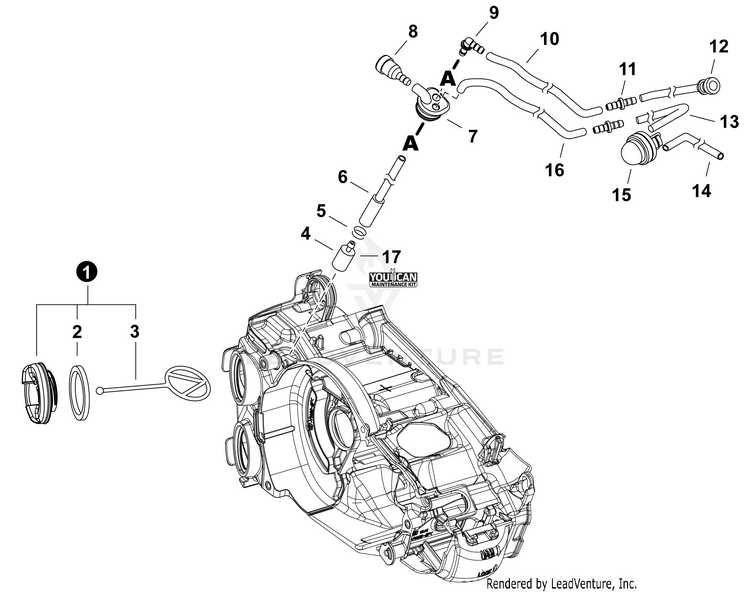

Fuel System

...
...
1
CAP ASSY, FUEL Includes Items 2-3 ECH-A033000410
...
2
GASKET, CAP ECH-V107000180
...
3
CONNECTOR, CAP L= 60 MM ECH-A365000050
...
4
FILTER, FUEL ECH-A369000470
...
5
CLIP 6 ECH-V490000500
...
6
PIPE, FUEL ECH-V470002210
...
7
GROMMET, FUEL ECH-V137000140
...
8
VENT ASSY ECH-13130056431
...
9
CONNECTOR, PIPE ECH-V186000530
...
10
PIPE, FUEL 3x5x95 BLACK ECH-V471005231
...
11
CONNECTOR, PIPE ECH-V186000510
...
12
PIPE, FUEL ECH-V470002272
...
13
PIPE, FUEL 3x5x56.5 BLACK ECH-V471004871
...
14
PIPE, FUEL 2.5x4.5 BLACK ECH-V470002181
...
15
BULB, PURGE ECH-A035000040
...
16
PIPE, FUEL 3x5x115 BLACK ECH-V471003661
...
17
TUNE-UP KIT - YOUCAN™ ECH-90196Y
...
...
...
...
...
