Echo CS-2511T S/N: C71915001001 - C71915999999 Chainsaw

Model: CS-2511T S/N: C71915001001 - C71915999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

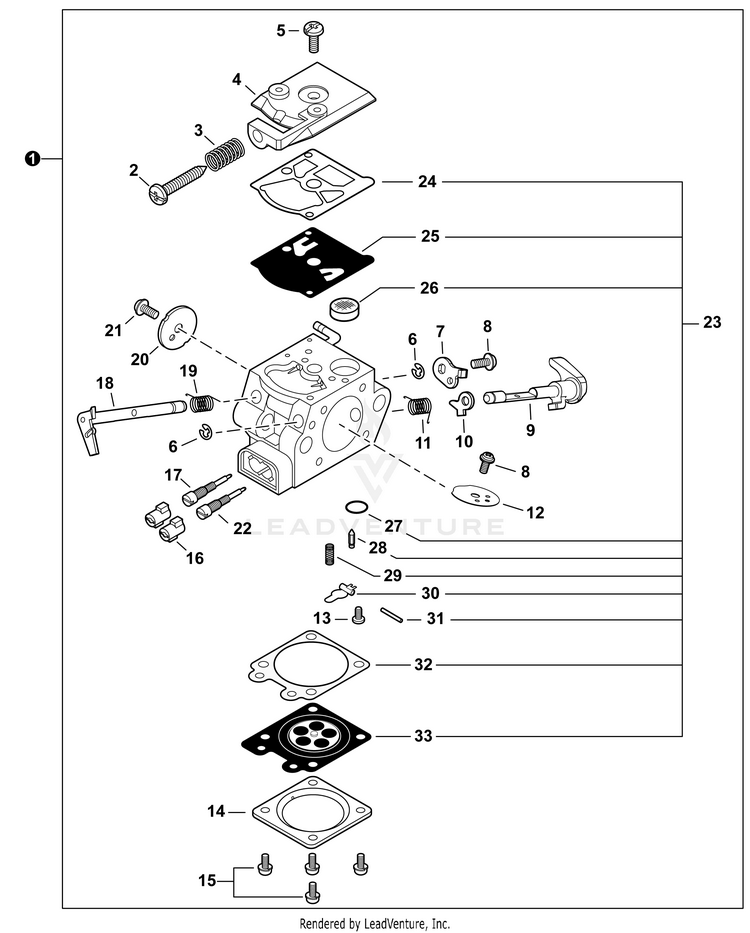

Carburetor

...
...
1
CARBURETOR WT-1208 Includes Items 2-33 ECH-A021004691
...
2
SCREW, IDLE ADJUST ECH-12313404260
...
3
SPRING, IDLE ADJUST ECH-12313304260
...
4
COVER, FUEL PUMP ECH-P003005980
...
5
SCREW ECH-12311003930
...
6
E-RING ECH-12312715030
...
7
LEVER, THROTTLE ECH-P003000380
...
8
SCREW ECH-12311438830
...
9
SHAFT ASSY, CHOKE ECH-P003005760
...
10
LEVER, FAST IDLE ECH-P003001510
...
11
SPRING ECH-P003004780
...
12
VALVE, CHOKE ECH-P003000410
...
13
SCREW ECH-P003005400
...
14
COVER, METERING DIAPHRAGM ECH-12314203930
...
15
SCREW ECH-12313002960
...
16
CAP, LIMITER ECH-P003000010
...
17
NEEDLE, MIXTURE ECH-P003004820
...
18
SHAFT, THROTTLE ECH-P003001300
...
19
SPRING, THROTTLE RETURN ECH-12311337530
...
20
VALVE, THROTTLE ECH-P003005750
...
21
SCREW ECH-P003002380
...
22
NEEDLE, MIXTURE ECH-12311839231
...
23
REPAIR KIT, CARBURETOR Includes Items 24-33 ECH-P033000030
...
24
GASKET, FUEL PUMP ECH---
...
25
DIAPHRAGM, PUMP ECH---
...
26
SCREEN, FUEL INLET ECH---
...
27
PLUG, WELCH ECH---
...
28
VALVE, INLET NEEDLE ECH---
...
29
SPRING, METERING LEVER ECH---
...
30
LEVER, METERING ECH---
...
31
PIN, METERING LEVER ECH---
...
32
GASKET, METERING DIAPHRAGM ECH---
...
33
DIAPHRAGM, METERING ECH---
...
...
...
...
...
