Echo CS-2511T S/N: C71915001001 - C71915999999 Chainsaw

Model: CS-2511T S/N: C71915001001 - C71915999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

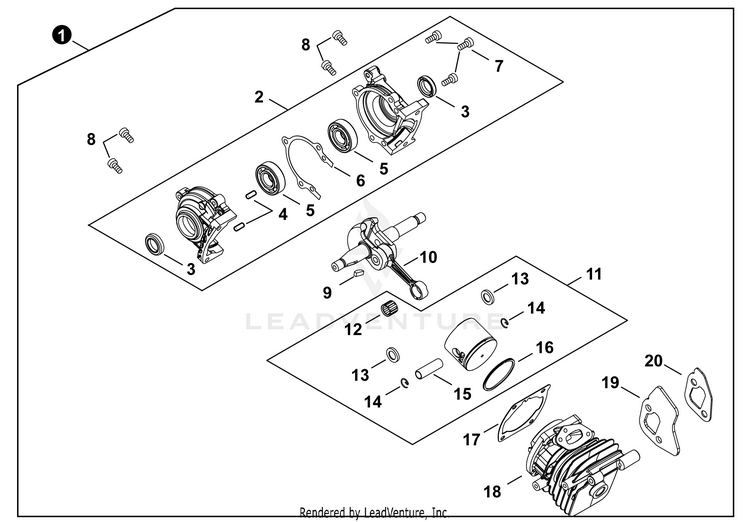

Engine

...
...
1
SHORT BLOCK Includes Items 2-20 ECH-SB1120
...
2
CRANKCASE SET Includes Items 3-7 ECH-P021050130
...
3
SEAL, OIL 12 ECH-V505000070
...
4
PIN, LOCATING 4x8 ECH-90033040080
...
5
BEARING, BALL 6001 ECH-90080036001
...
6
GASKET, CRANKCASE ECH-V102000290
...
7
BOLT, TORX 4x16 ECH-V804000100
...
8
BOLT, TORX 4x16 ECH-V804000100
...
9
KEY, WOODRUFF ECH-10014212330
...
10
CRANKSHAFT ECH-A011001440
...
11
PISTON KIT Includes Items 12-16 ECH-P021050120
...
12
BEARING, NEEDLE ECH-V553000140
...
13
WASHER, THRUST ECH-10001455930
...
14
RING, SNAP ECH-10001504630
...
15
PIN, PISTON 8 ECH-V606000020
...
16
RING, PISTON ECH-A101000700
...
17
GASKET, CYLINDER ECH-V100000830
...
18
CYLINDER ECH-P021051920
...
19
HEAT SHIELD, EXHAUST ECH-A312000090
...
20
GASKET, EXHAUST ECH-V104002290
...
...
...
...
...
