Echo CS-2511PN S/N: C89315001001 - C89315999999 Chainsaw

Model: CS-2511PN S/N: C89315001001 - C89315999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

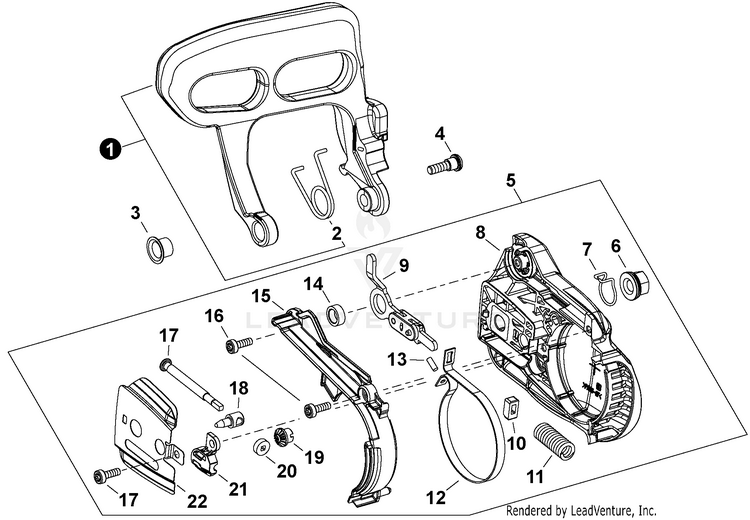

Chain Brake

...
...
1
KIT, BRAKE LEVER Includes Item 2 ECH-P200001730
...
2
SPRING, TORSION ECH-V452002040
...
3
COLLAR 10 ECH-V356000780
...
4
BOLT 5x13 ECH-V203002270
...
5
SPROCKET GUARD ASSY Includes Items 6 -22 ECH-P100002171
...
6
NUT 8 ECH-V265000550
...
7
HOOK ECH-C649000420
...
8
GUARD, SPROCKET ECH-C300001140
...
9
CONNECTOR, BRAKE ECH-C334000340
...
10
GUIDE ECH-V376000450
...
11
SPRING, COMPRESSION ECH-V450002080
...
12
BAND, BRAKE ECH-C328000330
...
13
PIN ECH-9305030080
...
14
COLLAR 8 ECH-V355000860
...
15
COVER, BRAKE ECH-C345000640
...
16
BOLT, TORX 4x12 ECH-V804000000
...
17
BOLT 5 ECH-V203000041
...
18
TENSIONER, CHAIN ECH-C309000110
...
19
GEAR, BEVEL ECH-V651001060
...
20
GEAR, BEVEL ECH-V651000011
...
21
COLLAR 8 ECH-V355000840
...
22
PLATE, GUIDE - OUTER ECH-C305000521
...
...
...
...
...
