Echo CS-2511PN S/N: C89315001001 - C89315999999 Chainsaw

Model: CS-2511PN S/N: C89315001001 - C89315999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?

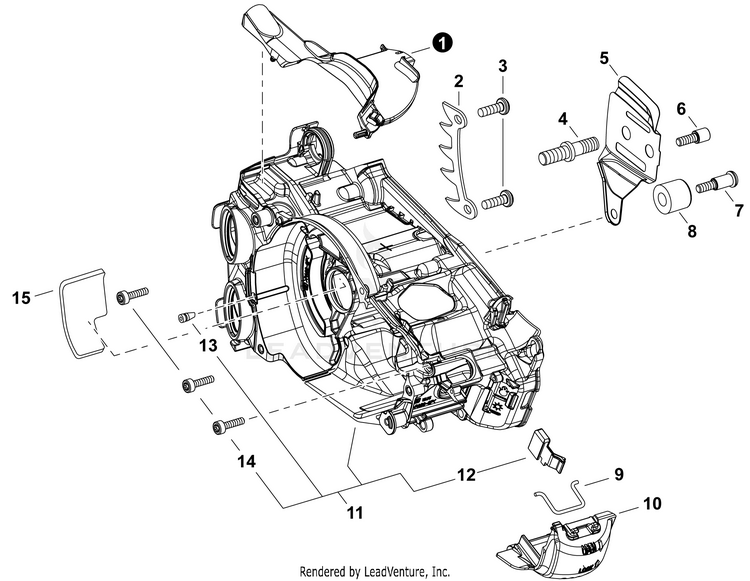

product name

Engine Cover

...
...
1
COVER, DUST ECH-A127000560
...
2
SPIKE, BUMPER ECH-C304000000
...
3
BOLT, TORX 5x12 ECH-V805000240
...
4
STUD, GUIDE BAR ECH-V225000263
...
5
PLATE, GUIDE - INNER ECH-C305000511
...
6
BOLT 5 ECH-V203002280
...
7
BOLT 5x12 ECH-V203002260
...
8
CATCHER, CHAIN ECH-C310000140
...
9
LATCH, COVER ECH-C649000440
...
10
COVER, SPARK PLUG ECH-A429000200
...
11
ENGINE COVER ASSY Includes Items 12-14 ECH-P021051914
...
12
SHUTTER, AIR ECH-A219000071
...
13
VENT ASSY ECH-43611413930
...
14
BOLT, TORX 4x16 ECH-V804000100
...
15
SHIELD, HEAT ECH-V341000201
...
...
...
...
...
