Echo CS-1201 S/N: C14320001001 - C14320999999 Chainsaw

Model: CS-1201 S/N: C14320001001 - C14320999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

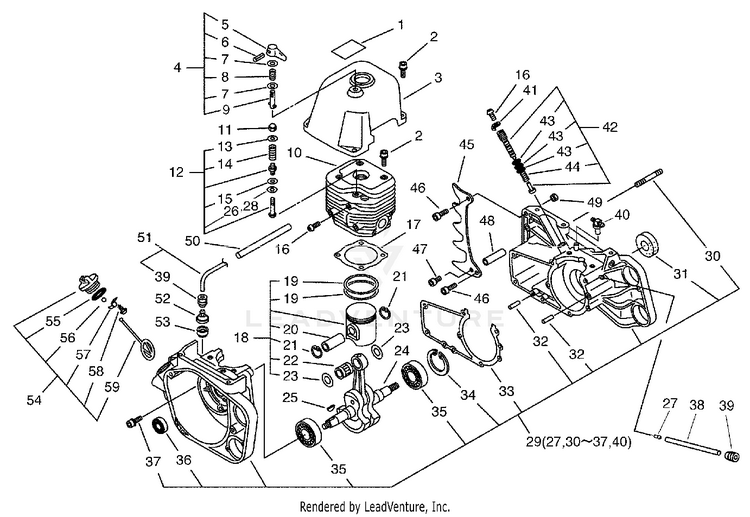

Cylinder, Piston, Crankcase

...
...
1
LABEL - DECOMPRESSION ECH-89014916430
...
1
LABEL - DECOMPRESSION ECH-89014916430
...
2
BOLT 6x25 ECH-90016206025
...
2
BOLT 6x25 ECH-90016206025
...
3
COVER, CYLINDER ECH-10151416432
...
3
COVER, CYLINDER ECH-10151416432
...
4
LEVER, DECOMPRESSION ECH-17980532930
...
4
LEVER, DECOMPRESSION ECH-17980532930
...
5
LEVER, DECOMPRESSION ECH-17981516432
...
5
LEVER, DECOMPRESSION ECH-17981516432
...
6
PIN, SPRING - 2x14 ECH-90034520014
...
6
PIN, SPRING - 2x14 ECH-90034520014
...
7
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
7
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
8
SPRING ECH-17981216431
...
8
SPRING ECH-17981216431
...
9
SHAFT, DECOMPRESSSION ECH-17980616431
...
9
SHAFT, DECOMPRESSSION ECH-17980616431
...
10
CYLINDER ECH-10101160730
...
10
CYLINDER ECH-10101160730
...
11
NUT ECH-40091200910
...
11
NUT ECH-40091200910
...
12
VALVE ASSY, DECOMPRESSION ECH-10110016430
...
12
VALVE ASSY, DECOMPRESSION ECH-10110016430
...
13
WASHER ECH-10111402831
...
13
WASHER ECH-10111402831
...
14
SPRING ECH-10111302830
...
14
SPRING ECH-10111302830
...
15
GASKET ECH-10111212430
...
15
GASKET ECH-10111212430
...
26
GASKET ECH-10111232930
...
26
GASKET ECH-10111232930
...
28
PACKING ECH-10111202830
...
28
PACKING ECH-10111202830
...
16
SCREW 5x10 ECH-90022005010
...
16
SCREW 5x10 ECH-90022005010
...
17
GASKET, CYLINDER ECH-10101016431
...
17
GASKET, CYLINDER ECH-10101016431
...
18
PISTON KIT, CS-1201 ECH-10000060731
...
18
PISTON KIT, CS-1201 ECH-10000060731
...
19
RING, PISTON ECH-10001116431
...
19
RING, PISTON ECH-10001116431
...
20
PIN, PISTON ECH-10001316430
...
20
PIN, PISTON ECH-10001316430
...
21
RING, SNAP ECH-10001516430
...
21
RING, SNAP ECH-10001516430
...
22
BEARING, NEEDLE ECH-10001216430
...
22
BEARING, NEEDLE ECH-10001216430
...
23
WASHER, THRUST ECH-10001460730
...
23
WASHER, THRUST ECH-10001460730
...
24
CRANKSHAFT ECH-10010060731
...
24
CRANKSHAFT ECH-10010060731
...
25
KEY, WOODRUFF ECH-10014212330
...
25
KEY, WOODRUFF ECH-10014212330
...
29
CRANKCASE KIT ECH-10020416430
...
29
CRANKCASE KIT ECH-10020416430
...
27
CONNECTOR ECH-13011312330
...
27
CONNECTOR ECH-13011312330
...
30
STUD, GUIDE BAR ECH-43301116430
...
30
STUD, GUIDE BAR ECH-43301116430
...
31
SEAL, OIL ECH-10021216431
...
31
SEAL, OIL ECH-10021216431
...
32
PIN, LOCATING 5x10 ECH-10021502830
...
32
PIN, LOCATING 5x10 ECH-10021502830
...
33
GASKET, CRANKCASE ECH-10024216430
...
33
GASKET, CRANKCASE ECH-10024216430
...
34
RING, RETAINING - 47 ECH-90070200047
...
34
RING, RETAINING - 47 ECH-90070200047
...
35
BEARING, BALL BB6204 ECH-90081006204
...
35
BEARING, BALL BB6204 ECH-90081006204
...
36
SEAL, OIL ECH-10021316430
...
36
SEAL, OIL ECH-10021316430
...
37
BOLT 6x30 ECH-90016206030
...
37
BOLT 6x30 ECH-90016206030
...
40
CONNECTOR ASSY ECH-43720114730
...
40
CONNECTOR ASSY ECH-43720114730
...
38
PIPE, FUEL 3x6x140 BLACK ECH-13011016430
...
38
PIPE, FUEL 3x6x140 BLACK ECH-13011016430
...
41
WASHER, LOCK ECH-43705911133
...
41
WASHER, LOCK ECH-43705911133
...
42
AUTO OILER ASSY ECH-C022000170
...
42
AUTO OILER ASSY ECH-C022000170
...
43
O-RING ECH-43702002830
...
43
O-RING ECH-43702002830
...
44
SPRING ECH-43701902830
...
44
SPRING ECH-43701902830
...
45
SPIKE, BUMPER ECH-88021016431
...
45
SPIKE, BUMPER ECH-88021016431
...
46
BOLT 6x20 ECH-90010506020
...
46
BOLT 6x20 ECH-90010506020
...
47
BOLT 5x14 ECH-90016205014
...
47
BOLT 5x14 ECH-90016205014
...
48
CATCHER, CHAIN ECH-43302616430
...
48
CATCHER, CHAIN ECH-43302616430
...
49
NUT, LOCK ECH-14571300630
...
49
NUT, LOCK ECH-14571300630
...
50
PROTECTOR, TUBE ECH-43741216430
...
50
PROTECTOR, TUBE ECH-43741216430
...
51
PIPE ECH-43720516430
...
51
PIPE ECH-43720516430
...
39
GROMMET ECH-13211512330
...
39
GROMMET ECH-13211512330
...
52
FILTER, OIL ECH-43620514730
...
52
FILTER, OIL ECH-43620514730
...
53
OIL FILTER COVER ECH-43621216431
...
53
OIL FILTER COVER ECH-43621216431
...
54
CAP ASSY, OIL TANK ECH-43600160730
...
54
CAP ASSY, OIL TANK ECH-43600160730
...
55
O-RING 25 MM ECH-90072000025
...
55
O-RING 25 MM ECH-90072000025
...
56
VALVE, BALL ECH-43602402830
...
56
VALVE, BALL ECH-43602402830
...
57
RETAINER, CONNECTOR ECH-13105019830
...
57
RETAINER, CONNECTOR ECH-13105019830
...
58
SCREW, TAPPING 3x8 ECH-90024603008
...
58
SCREW, TAPPING 3x8 ECH-90024603008
...
59
CONNECTOR, CAP L= 60 MM ECH-A365000050
...
59
CONNECTOR, CAP L= 60 MM ECH-A365000050
...
...
...
...
...
