Echo CCS-58V 58 Volt Chain Saw Mfg No. 107174001 1-28-20 (Rev:14) Chainsaw

Model: CCS-58V Chain Saw 107174001 1-28-20 (Rev:14)

Save
 Part Not Listed?Part Not Listed?
product name

General Assembly

...
...
1
Flange Nut (5/16-18, Hex Hd. for Guide Bar) ECH-678339003
...
2
Chain Brake Label ECH-940851057
...
3
Driving Adjustment Gear ECH-612376002
...
4
Driven Adjustment Gear ECH-694251002
...
5
Oil Cap Filter ECH-900777001
...
6
Guide Plate ECH-635349002
...
7
Screw (M4 x 12 mm, T20 Torx Hd.) ECH-660922001
...
8
SAFE-T-TIP ECH-308949004
...
9
Bar w/Graphics (Black 16 in. Bar) ECH-307556001
...
xx
Bar w/Graphics (Silver 16 in. Bar) ECH-313556001
...
10
Chain (16 in.) ECH-681946001
...
11
SAFE-T-TIP (Screw & Washer) ECH-660640001
...
12
Scabbard (16 in.) ECH-580146001
...
13
Guide Plate Bar ECH-635335003
...
14
Screw (10-14 x 13 mm, T25 Torx Ch. Hd. ) ECH-662064001
...
15
Screw (M4-18 x 12 mm, T20 Torx Pan Hd.) ECH-662083001
...
16
SPRING ECH-678061001
...
17
E-RING ECH-636159001
...
18
Cap Washer ECH-635367001
...
19
Sprocket w/Drum ECH-612309002
...
20
Screw (M5 x 15 mm, T25 Torx Flange Hd.) ECH-662052001
...
21
Screw (M4 x 9.5 mm, T20 Torx Truss Hd.) ECH-660610001
...
22
Oil Pump Assembly ECH-309514001
...
23
Outlet Tube ECH-563438001
...
24
Icon Label ECH-940657143
...
25
Housing Assembly ECH-120539001
...
26
Warning Label (Right) ECH-940657087
...
27
Chain Brake Spring ECH-678057001
...
28
Screw (M5 x 10 mm, T25 Torx Hd. T.F.) ECH-662113001
...
29
Front Handle Guard ECH-120559001
...
30
Screw (M8 x 12 mm, T20 Torx Truss Hd.) ECH-660608001
...
31
Screw (M4-18 x 10 mm, T20 Torx Washer Hd.) ECH-662199001
...
32
TERMINAL ECH-900876003
...
33
Battery Carriage and Circuit Board Assembly ECH-120542001
...
34
Oil Pump Spring ECH-694071001
...
35
C-Ring ECH-635321001
...
36
Motor Assembly ECH-307415001
...
37
Guard Bushing ECH-678602002
...
38
Washer (ID6.8 x OD16 x 1.5t) ECH-678587001
...
39
E-RING ECH-671075001
...
40
Variable Signal Switch ECH-760952002
...
41
Screw (M5 x 25.5 mm, T25 Torx Rd. Hd.) ECH-662053002
...
42
Front Handle ECH-528378001
...
43
Warning Label (Left) ECH-940657144
...
44
Oil Tank Gasket ECH-563594001
...
45
Oil Cap Assembly ECH-307451001
...
46
Screw (M5 x 17.5 mm, T20 Torx Pan Hd.) ECH-662051002
...
47
Wrench Spring Plate ECH-563623001
...
48
WRENCH ECH-612574001
...
49
Data Label ECH-941588070
...
50
Danger Label ECH-940851046
...
51
Chain Brake Assembly ECH-120544001
...
52
Trigger Assembly ECH-120546001
...
53
Side Cover Assembly ECH-120543001
...
54
Brake bend Connector Assembly ECH-307447001
...
55
Brake Bend Assembly ECH-307448001
...
56
Oil Tank Assembly ECH-307450001
...
57
Volute & Wire Cover Assembly ECH-120545001
...
58
Compression Spring ECH-694143003
...
59
Guide Bar Bolt ECH-660503004
...
xx
58V Battery Pack (CBP-58V20, Not Included) Not Shown ECH-000998945DG9
...
xx
58V Battery Pack (CBP-58V40, Not Included) Not Shown ECH-000998946DG9
...
xx
58V Charger (CBC-58V, Not Included) Not Shown ECH-140330001
...
xx
Operator's Manual (ECHO #99922205192) Not Shown ECH-991000276

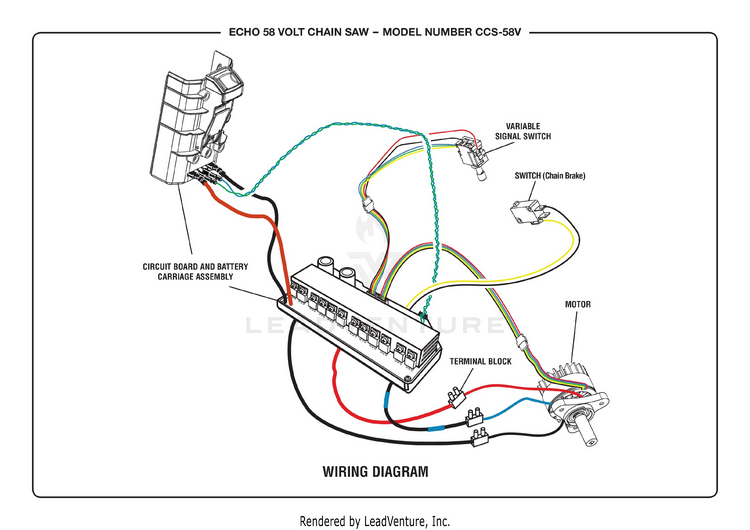

Wiring Diagram

...
...
xx
No Part List Information Available ECH---
...
...
...
...
...
