Echo C35LA Brushcutter

Model: C35LA

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

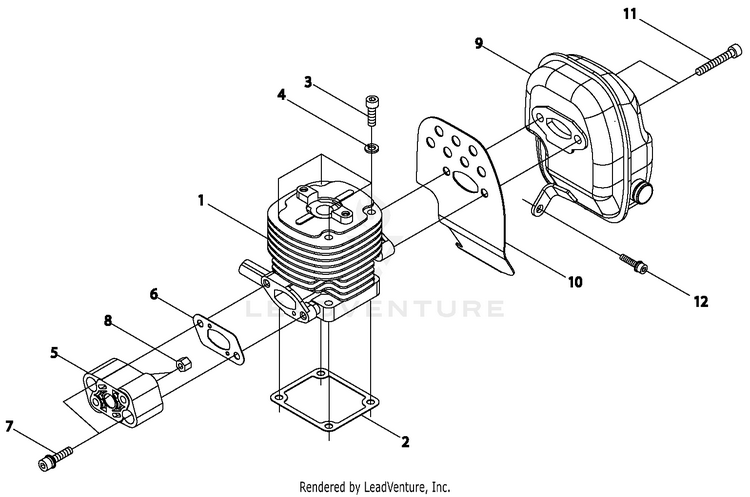

Cylinder / Intake / Muffler

...
...
1
CYLINDER 70196-12110 ECH-A130001371
...
2
GASKET, CYLINDER 20010-12121 ECH-V100000470
...
3
BOLT 5x25 01020-05250 ECH-90010505025
...
4
WASHER, SPRING 5 01600-05131 ECH-90060500005
...
5
INSULATOR, INTAKE 20011-12212 ECH-A200000660
...
6
GASKET, INTAKE 20011-12221 ECH-V103000950
...
7
BOLT M5x25 11022-05250 ECH-V203000630
...
8
NUT M5x6.3 20011-12260 ECH-V263000260
...
9
MUFFLER 62104-15110 ECH-A300001130
...
10
HEAT SHIELD, EXHAUST 62104-15210 ECH-V104001340
...
11
BOLT 6x25 01020-06250 ECH-90010506025
...
12
BOLT M5x12 11024-05120 ECH-V203000820
...
...
...
...
...
