Echo C35LA Brushcutter

Model: C35LA

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

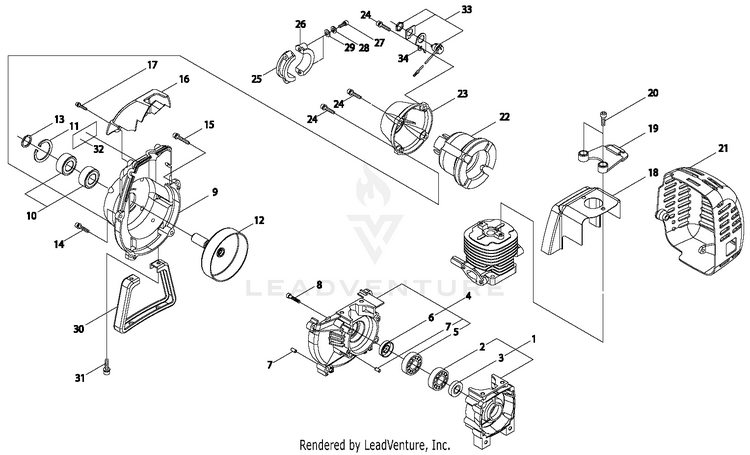

Crankcase / Engine Cover / Fan Cover

...
...
1
CRANKCASE ASSY, S 72935-21101 ECH-P021033432
...
2
BEARING, BALL 6202 C3 12900-62020 ECH-V592000290
...
3
SEAL, OIL 16 20010-21211 ECH-V508000050
...
4
CRANKCASE ASSY, M 70062-21200 ECH-P021030051
...
5
BEARING, BALL 6202 C3 12900-62020 ECH-V592000290
...
6
SEAL, OIL 16 20010-21211 ECH-V508000050
...
7
PIN, LOCATING 5x10 12492-50100 ECH-10021502830
...
8
BOLT 5x30 01020-05300 ECH-90010505030
...
9
COVER, FAN 70084-31111 ECH-A172001250
...
10
BEARING, BALL 6002 DDU 02006-06002 ECH-90080206002
...
11
RING, SNAP 32 02432-32120 ECH-90070200032
...
12
DRUM, CLUTCH - C35,C350,T350 62112-31210 ECH-A556001640
...
13
RING, SNAP 20011-31230 ECH-V583000181
...
14
BOLT 5x20 11022-05200 ECH-V203000351
...
15
BOLT M5x30 11022-05300 ECH-V203000581
...
16
GUARD, TOP 70131-34100 ECH-A162000190
...
17
BOLT M4x16 11024-04160 ECH-9111304016
...
18
COVER, ENGINE 62112-32110 ECH-A160002430
...
19
STAY, ENGINE COVER 62104-32310 ECH-A163000020
...
20
BOLT M5x18 11022-05180 ECH-V203000541
...
21
COVER, MUFFLER 62104-32321 ECH-A320000770
...
22
CUSHION, AV 20011-35110 ECH-A575000400
...
23
CAP, CUSHION 70012-35130 ECH-A575000410
...
24
BOLT 5x20 11022-05200 ECH-V203000351
...
25
CLAMP - A 20011-35141 ECH-A575000420
...
26
CLAMP - B 20011-35151 ECH-A575000430
...
27
BOLT 5x25 01020-05250 ECH-90010505025
...
28
WASHER, SPRING 5 01600-05131 ECH-90060500005
...
29
WASHER, FLAT 5.5x10x0.8 01610-05080 ECH-90060000005
...
30
STAND 70200-33112 ECH-A175000180
...
31
BOLT 5x16 11022-05160 ECH-V203000591
...
32
LABEL - TRADE 62112-91320 ECH-X504002570
...
33
SWITCH, ON-OFF 72930-14210 ECH-A045000340
...
34
BRACKET 70014-74120 ECH-A439000510
...
...
...
...
...
