Echo C35LA Brushcutter

Model: C35LA

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

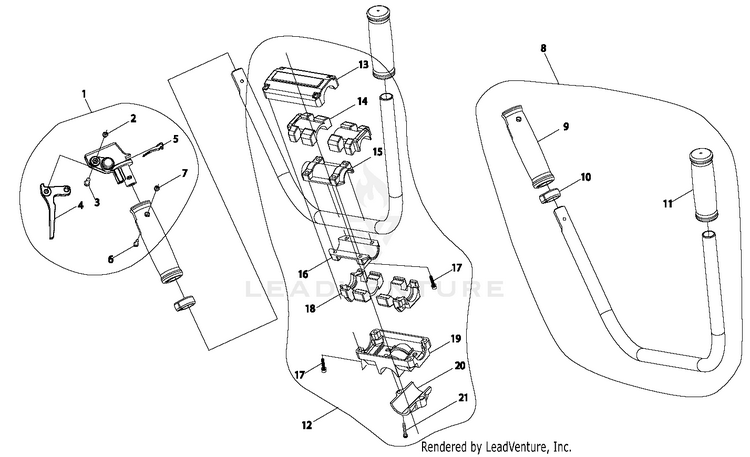

Handle Bracket Kit / Throttle Control

...
...
1
THROTTLE CONTROL ASSY 22015-14301 ECH-C044000830
...
2
NUT, LOCK M5 72935-61240 ECH-V263000240
...
3
BOLT 22015-14340 ECH-V203000810
...
4
TRIGGER, THROTTLE 22015-14331 ECH-C450000510
...
5
STOPPER, THROTTLE TRIGGER 22015-14321 ECH-C617000410
...
6
BOLT M4x24 01020-04240 ECH-9110004024
...
7
NUT, NYLON M4 22015-14390 ECH-V262000080
...
8
HANDLEBAR ASSY 22020-14200 ECH-P021035490
...
9
GRIP, RIGHT 22015-14220 ECH-C403000400
...
10
HOLDER, THROTTLE CABLE 22015-14290 ECH-C487000240
...
11
GRIP, LEFT 22015-14230 ECH-C403000410
...
12
BRACKET ASSY, HANDLEBAR 72555-14100 ECH-P021033251
...
13
BRACKET, UPPER 72555-14130 ECH-C423000750
...
14
CUSHION, UPPER 22015-14170 ECH-V420002470
...
15
CLAMP, UPPER 22015-14150 ECH-C423000770
...
16
CLAMP, LOWER 22015-14140 ECH-C423000760
...
17
BOLT M5x25 11022-05250 ECH-V203000630
...
18
CUSHION, LOWER 22015-14160 ECH-V420002460
...
19
BRACKET, LOWER 72555-14110 ECH-C423000710
...
20
BRACKET, MOUNTING 72555-14120 ECH-C423000730
...
21
SCREW M6x25 11210-06250 ECH-9114206025
...
...
...
...
...
