Echo C35LA Brushcutter

Model: C35LA

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

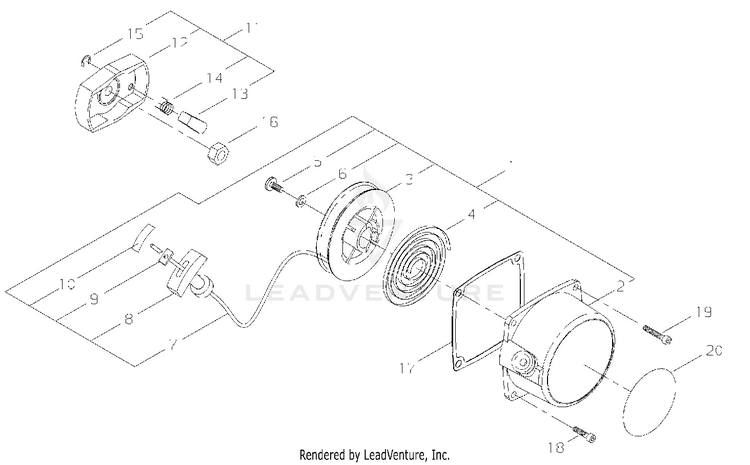

Starter

...
...
1
STARTER ASSY, RECOIL ECH-7013175100
...
2
CASE, RECOIL STARTER ECH-A500000840
...
3
REEL, ROPE ECH-17721543130
...
4
SPRING, RECOIL ECH-17722040630
...
5
SCREW ECH-17723640630
...
6
WASHER ECH-17721441030
...
7
ROPE, STARTER ECH-A509000190
...
8
GRIP, STARTER ECH-17722827030
...
9
RETAINER, ROPE ECH-P022037670
...
10
TAPE ECH-X707000050
...
11
PAWL ASSY, STARTER ECH-A052000370
...
12
PULLEY, STARTER ECH-A520000150
...
13
PAWL, STARTER ECH-17721840630
...
14
SPRING, RETURN ECH-17723440630
...
15
E-RING 4 ECH-P022002100
...
16
NUT M8xH5 ECH-V265000170
...
17
GASKET, RECOIL STARTER ECH-V105000031
...
18
BOLT M4x16 ECH-V202000581
...
19
BOLT, 4 ECH-V202000431
...
20
LABEL - RECOIL STARTER ECH-X504002770
...
...
...
...
...
