Echo C350 Brushcutter

Model: C350

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

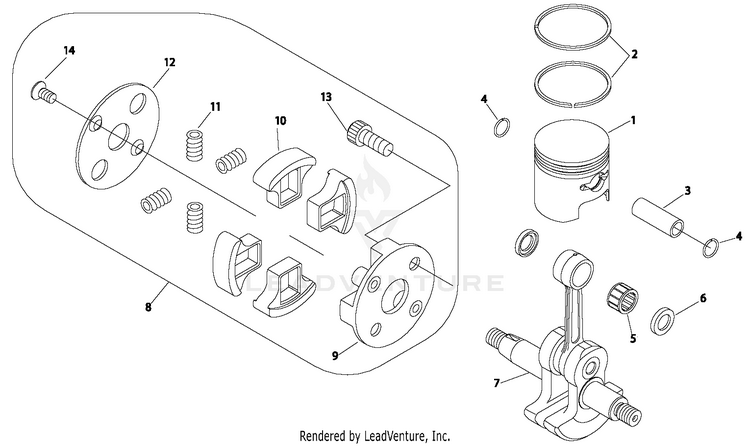

Clutch, Piston

...
...
1
PISTON 20010-41111 ECH-A100000700
...
2
RING, PISTON 20010-41210 ECH-A101000380
...
3
PIN, PISTON 10 20010-41310 ECH-V608000060
...
4
RING, SNAP 22100-41230 ECH-V580000110
...
5
BEARING, NEEDLE 10 20010-41330 ECH-V555000090
...
6
WASHER, THRUST 70200-41341 ECH-V307000220
...
7
CRANKSHAFT ASSY 20010-42002 ECH-A011000860
...
8
CLUTCH ASSY 70210-51100 ECH-A056000452
...
9
BOSS, CLUTCH 20020-51112 ECH-A552000120
...
10
SHOE, CLUTCH 20020-51121 ECH-A555000130
...
11
SPRING, CLUTCH 20020-51131 ECH-A566000220
...
12
PLATE, CLUTCH 20020-51140 ECH-A551000120
...
13
BOLT, CLUTCH 20020-51150 ECH-A557000120
...
14
BOLT 5 70210-51160 ECH-V203000880
...
...
...
...
...
