Echo C350 Brushcutter

Model: C350

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

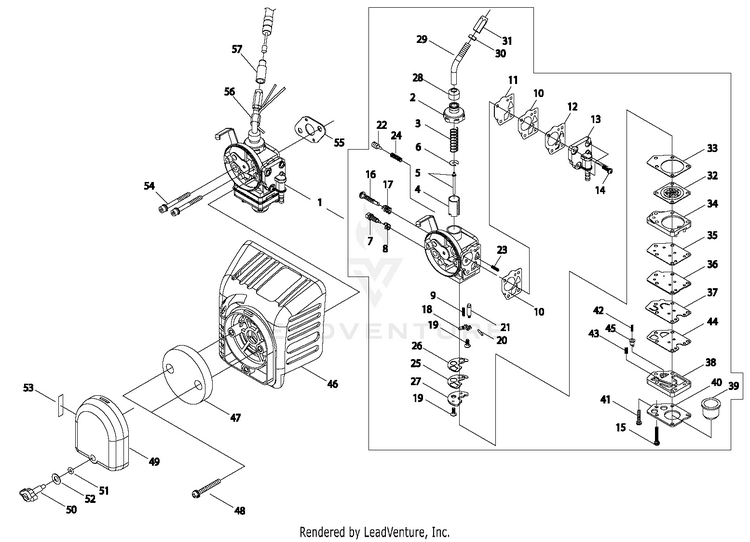

Carburetor / Air Filter

...
...
1
CARBURETOR 70200-81020 ECH-A021002470
...
2
CAP, CARBURETOR 20055-81120 ECH-P004000700
...
3
SPRING, THROTTLE 20003-81140 ECH-12411450330
...
4
VALVE, SLIDE 70131-81180 ECH-P004002900
...
5
NEEDLE, JET 70200-81170 ECH-P004002940
...
6
WASHER, SPRING SUPPORT 20000-81150 ECH-12411505530
...
7
SCREW, MAIN ADJUST 70200-81350 ECH-12435412710
...
8
SPRING 20011-81360 ECH-12435521330
...
9
SPRING 20040-81430 ECH-12433149930
...
10
GASKET, DIAPHRAGM 20011-81630 ECH-12436321330
...
11
DIAPHRAGM, METERING 20011-81621 ECH-P004001430
...
12
VALVE, PUMP 20087-81660 ECH-P004002550
...
13
PUMP BODY 20087-81640 ECH-P004003230
...
14
SCREW 20000-81650 ECH-P004001030
...
15
SCREW 3x20 20087-81880 ECH-90024103020
...
16
SCREW, IDLE ADJUST 20000-81310 ECH-12415905530
...
17
SPRING 72920-81820 ECH-12416011120
...
18
LEVER, METERING 20011-81451 ECH-P004001340
...
19
SCREW M3x8 20011-81470 ECH-P004001350
...
20
PIN, METERING LEVER 20011-81460 ECH-12433221330
...
21
VALVE, INLET NEEDLE 20000-81441 ECH-P004000930
...
22
SCREW, SLOW AIR 20000-81330 ECH-P004000880
...
23
SPRING 20040-81680 ECH-12435550130
...
24
SPRING 20000-81340 ECH-P004000890
...
25
VALVE, CHECK 20087-81411 ECH-P004002500
...
26
GASKET 20087-81420 ECH-12437512710
...
27
PLATE 70200-81430 ECH-P004002950
...
28
CAP, DUST 20055-81130 ECH-P004002180
...
29
PIPE, CABLE ADJUSTER 70107-81830 ECH-P004002870
...
30
NUT, LOCK 20000-81260 ECH-12411105810
...
31
ADJUSTER, CABLE 20055-81810 ECH-12415846630
...
32
DIAPHRAGM, METERING 20087-81520 ECH-12434149930
...
33
GASKET, METERING DIAPHRAGM 20087-81510 ECH-12435849930
...
34
COVER, PUMP 20087-81550 ECH-12437949930
...
35
GASKET 20087-81540 ECH-12435949930
...
36
PLATE, PUMP 20087-81560 ECH-12436049930
...
37
VALVE, CHECK 20087-81571 ECH-P004002530
...
38
BODY, PURGE 20087-81811 ECH-P004002570
...
39
BULB, PURGE 20087-81820 ECH-12438012710
...
40
RETAINER, PURGE BULB 20087-81830 ECH-12434249930
...
41
SCREW 20087-81840 ECH-12431049930
...
42
SPRING 20087-81851 ECH-P004002580
...
43
SPRING 20087-81870 ECH-12435550130
...
44
GASKET 20087-81890 ECH-P004002600
...
45
VALVE, CHECK 20087-81861 ECH-P004002590
...
46
CASE, AIR FILTER 70102-81710 ECH-A225000490
...
47
FILTER, AIR 20056-81740 ECH-A226000650
...
48
SCREW 11207-04250 ECH-9157704025
...
49
COVER, AIR FILTER 20060-81770 ECH-A232000830
...
50
THUMBSCREW 20060-81781 ECH-A235000220
...
51
O-RING 22100-82430 ECH-V581000200
...
52
WASHER, CONE M6 20024-81790 ECH-V347000030
...
53
LABEL - CHOKE 19404-00008 ECH-X506000130
...
54
BOLT 5 11022-05550 ECH-V203000891
...
55
GASKET, CARBURETOR 20011-83411 ECH-V103000960
...
56
SLEEVE 20037-82130 ECH-V475004810
...
57
CAP, DUST 72550-82120 ECH-C482000070
...
...
...
...
...
