Echo C350 Brushcutter

Model: C350

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

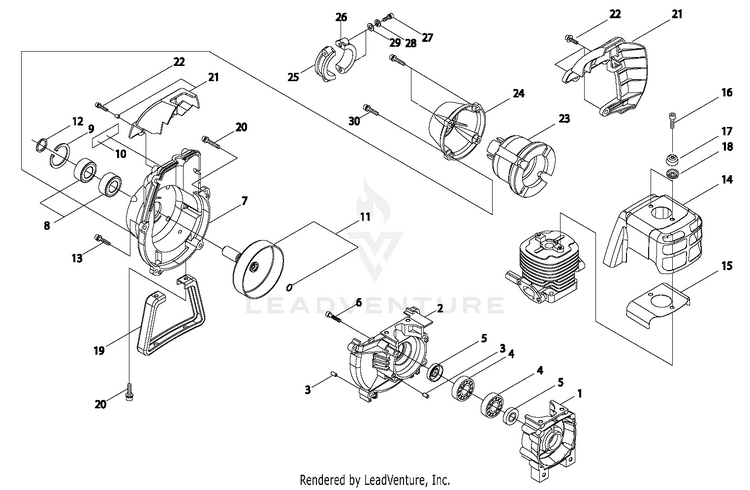

Crankcase / Engine Cover / Fan Cover

...
...
1
CRANKCASE S 72935-21111 ECH-A120000082
...
2
CRANKCASE M 72921-21121 ECH-A120000360
...
3
PIN, LOCATING 5x10 12492-50100 ECH-10021502830
...
4
BEARING, BALL 6202 C3 12900-62020 ECH-V592000290
...
5
SEAL, OIL 16 20010-21211 ECH-V508000050
...
6
BOLT 5x30 01020-05300 ECH-90010505030
...
7
COVER, FAN 70012-31111 ECH-A172002310
...
8
BEARING, BALL 6002 DDU 02006-06002 ECH-90080206002
...
9
RING, SNAP 32 02432-32120 ECH-90070200032
...
10
LABEL, C350 LA 70200-31151 ECH-X562001420
...
11
DRUM, CLUTCH - C35,C350,T350 20011-31200 ECH-A556001640
...
12
RING, SNAP 20011-31230 ECH-V583000181
...
13
BOLT 5x20 11022-05200 ECH-V203000351
...
14
COVER, ENGINE 70196-32110 ECH-A160001600
...
15
SHIELD, HEAT 70196-32141 ECH-V101000020
...
16
BOLT M5x14 11020-05140 ECH-V203000840
...
17
CUSHION 70196-32160 ECH-A459000020
...
18
WASHER 70196-32150 ECH-V340000260
...
19
STAND 70200-33112 ECH-A175000180
...
20
BOLT 5x16 11022-05160 ECH-V203000591
...
21
GUARD, TOP 20011-34100 ECH-A162000180
...
22
BOLT M4x16 11024-04160 ECH-9111304016
...
23
CUSHION, AV 20011-35110 ECH-A575000400
...
24
CAP, CUSHION 70012-35130 ECH-A575000410
...
25
CLAMP - A 20011-35141 ECH-A575000420
...
26
CLAMP - B 20011-35151 ECH-A575000430
...
27
BOLT 5x25 01020-05250 ECH-90010505025
...
28
WASHER, SPRING 5 01600-05131 ECH-90060500005
...
29
WASHER, FLAT 5.5x10x0.8 01610-05080 ECH-90060000005
...
30
BOLT 5x20 11022-05200 ECH-V203000351
...
...
...
...
...
