Echo C350 Brushcutter

Model: C350

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

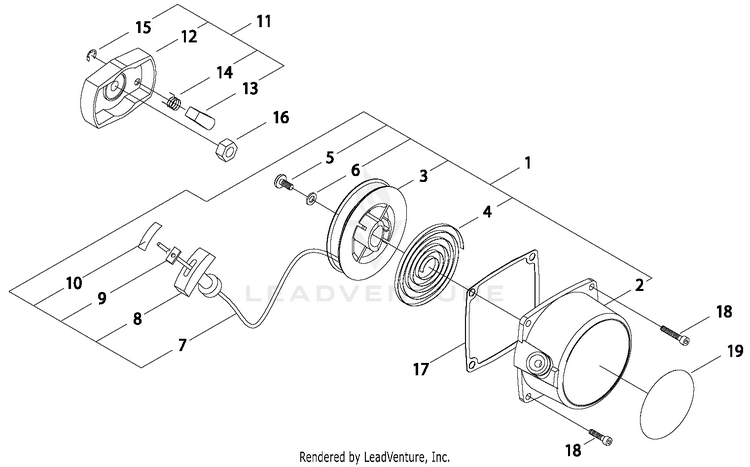

Starter

...
...
1
STARTER ASSY, RECOIL 70131-75900 ECH-7013175100
...
2
CASE, RECOIL STARTER 70131-75110 ECH-A500000840
...
3
REEL, ROPE 70131-75120 ECH-17721543130
...
4
SPRING, RECOIL 20024-75130 ECH-17722040630
...
5
SCREW 20035-75170 ECH-17723640630
...
6
WASHER 70131-75140 ECH-17721441030
...
7
ROPE, STARTER 20020-75180 ECH-A509000190
...
8
GRIP, STARTER 20010-75190 ECH-17722827030
...
9
RETAINER, ROPE 20010-75210 ECH-P022037670
...
10
TAPE 20010-75230 ECH-X707000050
...
11
PAWL ASSY, STARTER 70131-75200 ECH-A052000370
...
12
PULLEY, STARTER 70131-75211 ECH-A520000150
...
13
PAWL, STARTER 20024-75220 ECH-17721840630
...
14
SPRING, RETURN 20024-75230 ECH-17723440630
...
15
E-RING 4 20024-75240 ECH-P022002100
...
16
NUT M8xH5 20000-76210 ECH-V265000170
...
17
GASKET, RECOIL STARTER 20020-76111 ECH-V105000031
...
18
BOLT M4x16 11022-04160 ECH-V202000581
...
19
LABEL - RECOIL STARTER 19420-00027 ECH-X504002770
...
...
...
...
...
