Echo C350 Brushcutter

Model: C350

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

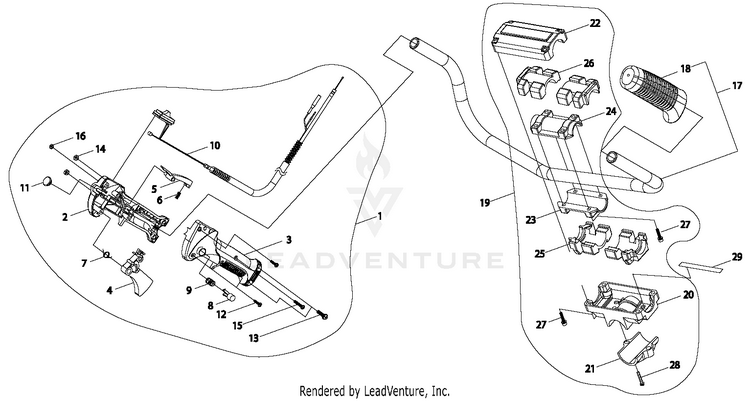

Throttle Control / Handle Bracket Kit

...
...
1
THROTTLE CONTROL ASSY 64007-64253 ECH-C044000882
...
2
CONTROL HANDLE - RIGHT 72550-14512 ECH-C412000430
...
3
CONTROL HANDLE SET 72550-14522 ECH-P021044960
...
4
TRIGGER, THROTTLE 70871-65130 ECH-C450000581
...
5
LOCKOUT, THROTTLE 70871-65140 ECH-C460000241
...
6
SPRING, COMPRESSION 70871-65150 ECH-V450001020
...
7
SPRING, TORSION 70871-65160 ECH-V452000690
...
8
BUTTON, THROTTLE LOCK 70871-65170 ECH-C461000080
...
9
SPRING, COMPRESSION 70871-65180 ECH-V450001010
...
10
CABLE ASSY, CONTROL 64007-64310 ECH-V043000540
...
11
PLUG, RUBBER 22150-33630 ECH-V162000410
...
12
SCREW, TAPPING 4x16 70871-65311 ECH-V252000360
...
13
SCREW, TAPPING 4x16 70871-65311 ECH-V252000360
...
14
NUT M5 01501-05030 ECH-9201705000
...
15
SCREW M4x23 70871-65330 ECH-V252000090
...
16
NUT M4 70871-65340 ECH-V262000100
...
17
HANDLEBAR ASSY 72550-14200 ECH-P021035440
...
18
GRIP 72451-14320 ECH-C403000420
...
19
BRACKET KIT, HANDLE 72017-14100 ECH-P021031461
...
20
BRACKET, HANDLE 28 72017-14110 ECH-C423000700
...
21
CLAMP, LOWER 28 72017-14120 ECH-C423000720
...
22
CLAMP, UPPER 72017-14130 ECH-C423000740
...
23
CLAMP, LOWER 22015-14140 ECH-C423000760
...
24
CLAMP, UPPER 22015-14150 ECH-C423000770
...
25
CUSHION, LOWER 22015-14160 ECH-V420002460
...
26
CUSHION, UPPER 22015-14170 ECH-V420002470
...
27
BOLT M5x25 11022-05250 ECH-V203000630
...
28
SCREW M6x25 11210-06250 ECH-9114206025
...
29
LEAD - GROUND 72514-14190 ECH-A430000000
...
...
...
...
...
