Echo C350 Brushcutter

Model: C350

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

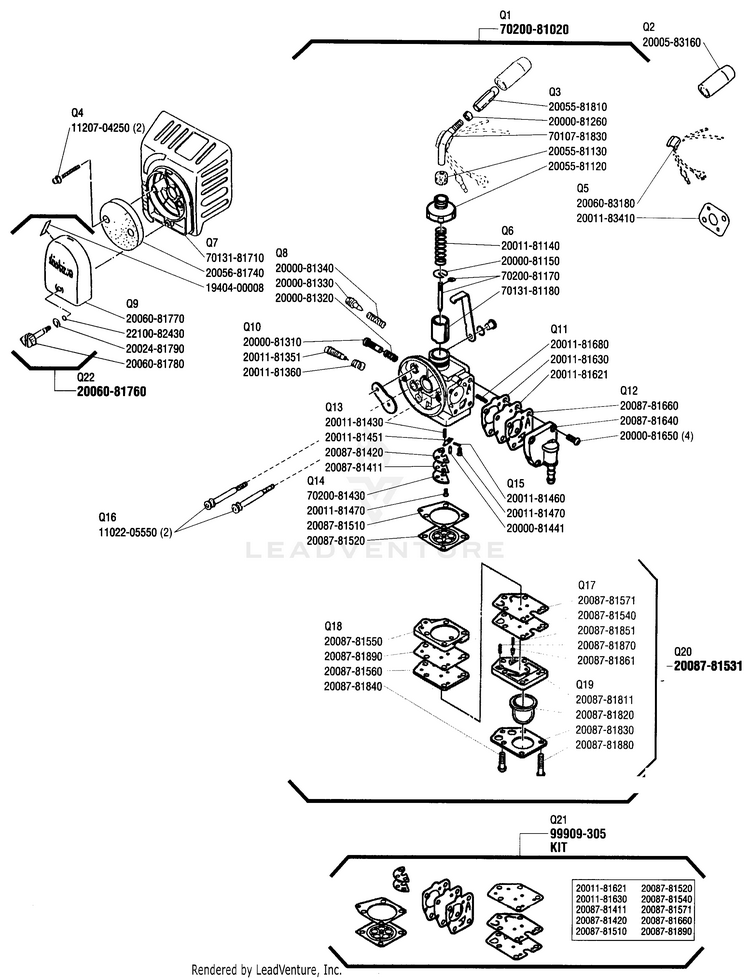

Carburetor

...
...
Q1
CARBURETOR ECH-A021002470
...
Q2
CAP, CARBURETOR ECH-A246000020
...
Q3
PIPE, CABLE ADJUSTER ECH-P004002870
...
Q3
NUT, LOCK ECH-12411105810
...
Q3
CAP, CARBURETOR ECH-P004000700
...
Q3
CAP, DUST ECH-P004002180
...
Q3
ADJUSTER, CABLE ECH-12415846630
...
Q4
SCREW ECH-9157704025
...
Q5
TUBE, PROTECTIVE ECH-V475004760
...
Q5
GASKET, CARBURETOR ECH-V103000960
...
Q6
WASHER, SPRING SUPPORT ECH-12411505530
...
Q6
SPRING ECH-P004000440
...
Q6
VALVE, SLIDE ECH-P004002900
...
Q6
NEEDLE, JET ECH-P004002940
...
Q7
LABEL - CHOKE ECH-X506000130
...
Q7
FILTER, AIR ECH-A226000650
...
Q7
CASE, AIR FILTER ECH-A225000490
...
Q8
SPRING ECH-P004000890
...
Q8
SCREW, SLOW AIR ECH-P004000880
...
Q8
SPRING ECH-12433305630
...
Q9
THUMBSCREW ECH-A235000220
...
Q9
WASHER, CONE M6 ECH-V347000030
...
Q9
COVER, AIR FILTER ECH-A232000830
...
Q9
O-RING ECH-V581000200
...
Q10
SCREW, IDLE ADJUST ECH-12415905530
...
Q10
SCREW, MAIN ADJUST ECH-P004001300
...
Q10
SPRING ECH-12435521330
...
Q11
SPRING, COIL ECH-12436721330
...
Q11
DIAPHRAGM, METERING ECH-P004001430
...
Q11
GASKET, DIAPHRAGM ECH-12436321330
...
Q12
SCREW ECH-P004001030
...
Q12
PUMP BODY ECH-P004003230
...
Q12
VALVE, PUMP ECH-P004002550
...
Q13
SPRING ECH-12433121330
...
Q13
LEVER, METERING ECH-P004001340
...
Q13
VALVE, CHECK ECH-P004002500
...
Q13
GASKET ECH-12437512710
...
Q14
SCREW M3x8 ECH-P004001350
...
Q14
GASKET, METERING DIAPHRAGM ECH-12435849930
...
Q14
DIAPHRAGM, METERING ECH-12434149930
...
Q14
PLATE ECH-P004002950
...
Q15
SCREW M3x8 ECH-P004001350
...
Q15
VALVE, INLET NEEDLE ECH-P004000930
...
Q15
PIN, METERING LEVER ECH-12433221330
...
Q16
BOLT 5 ECH-V203000891
...
Q17
GASKET ECH-12435949930
...
Q17
VALVE, CHECK ECH-P004002530
...
Q17
SPRING ECH-P004002580
...
Q17
VALVE, CHECK ECH-P004002590
...
Q17
SPRING ECH-12435550130
...
Q18
COVER, PUMP ECH-12437949930
...
Q18
PLATE, PUMP ECH-12436049930
...
Q18
SCREW ECH-12431049930
...
Q18
GASKET ECH-P004002600
...
Q19
BODY, PURGE ECH-P004002570
...
Q19
BULB, PURGE ECH-12438012710
...
Q19
RETAINER, PURGE BULB ECH-12434249930
...
Q19
SCREW 3x20 ECH-90024103020
...
Q20
PURGE PUMP KIT ECH-P004002520
...
Q21
GASKET / DIAPHRAGM KIT ECH-P050009190
...
Q22
COVER ASSY, AIR FILTER ECH-A232000820
...
...
...
...
...
