Echo C350 Brushcutter

Model: C350

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

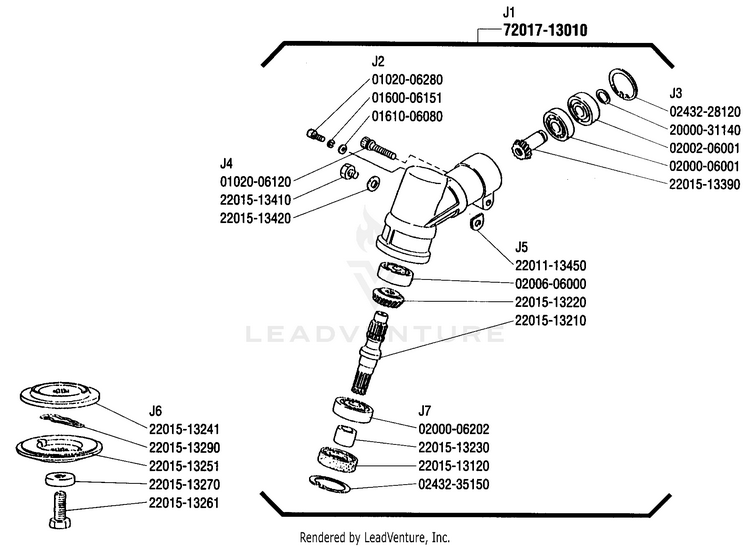

Gearcase

...
...
J1-72017-13010
GEAR CASE ASSY ECH-P021048490
...
J2-01020-06280
BOLT, HSH 6X28 ALLOY STEEL ECH-90010506028
...
J2-01600-06151
WASHER, SPRING 6 ECH-90060500006
...
J2-01610-06080
WASHER 6.5x11.5x0.8 ECH-90060000006
...
J3-02000-06001
BEARING, BALL 6001 ECH-90080036001
...
J3-02002-06001
BEARING, BALL 6001ZZ ECH-90080406001
...
J3-02432-28120
RING, SNAP 28 ECH-90070200028
...
J3-20000-31140
RING, SNAP 12 ECH-90070600012
...
J3-22015-13390
GEAR, PINION ECH-V651000520
...
J4-01020-06120
BOLT ECH-90010506012
...
J4-22015-13410
BOLT M6x10 ECH-V206000250
...
J4-22015-13420
WASHER ECH-V307000230
...
J5-02006-06000
BEARING, BALL 6000DDU ECH-90080206000
...
J5-22011-13450
D-WASHER ECH-V340000280
...
J5-22015-13210
GEAR SHAFT SET ECH-P021039360
...
J5-22015-13220
GEAR, BEVEL ECH-V651000540
...
J6-22015-13241
PLATE, ADAPTOR - UPPER ECH-C535000770
...
J6-22015-13251
PLATE, ADAPTOR - LOWER ECH-C535000781
...
J6-22015-13261
BOLT 10x30 ECH-V206000220
...
J6-22015-13270
GUARD, BOLT ECH-C535000790
...
J6-22015-13290
PIN, SLIDE ECH-V641000240
...
J7-02000-06202
BEARING, BALL 6202 ECH-90081006202
...
J7-02432-35150
RING, SNAP 35 ECH-90070200035
...
J7-22015-13120
SEAL, OIL ECH-22015-13120
...
J7-22015-13230
COLLAR ECH-V358000130
...
...
...
...
...
