Echo C350 Brushcutter

Model: C350

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

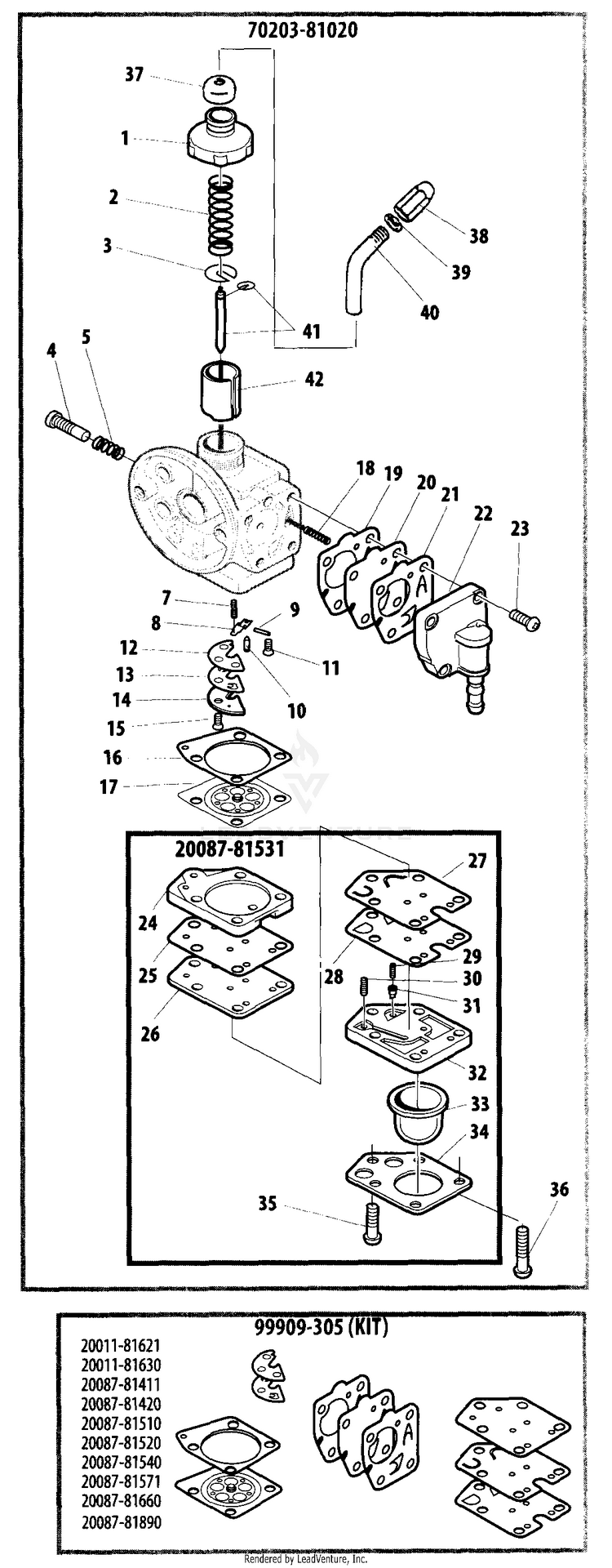

Carburetor -- EPA & CARB Changes

...
...
70203-81020
CARBURETOR ECH-A021002500
...
1
CAP, CARBURETOR ECH-P004000700
...
2
SPRING ECH-P004000440
...
3
WASHER, SPRING SUPPORT ECH-12411505530
...
4
SCREW, IDLE ADJUST ECH-12415905530
...
5
SPRING ECH-12433305630
...
7
SPRING ECH-12433149930
...
8
LEVER, METERING ECH-P004001340
...
9
PIN, METERING LEVER ECH-12433221330
...
10
VALVE, INLET NEEDLE ECH-P004000930
...
11
SCREW M3x8 ECH-P004001350
...
12
GASKET ECH-12437512710
...
13
VALVE, CHECK ECH-P004002500
...
14
PLATE ECH-P004002950
...
15
SCREW M3x8 ECH-P004001350
...
16
GASKET, METERING DIAPHRAGM ECH-12435849930
...
17
DIAPHRAGM, METERING ECH-12434149930
...
18
SPRING, COIL ECH-12436721330
...
19
GASKET, DIAPHRAGM ECH-12436321330
...
20
DIAPHRAGM, METERING ECH-P004001430
...
21
VALVE, PUMP ECH-P004002550
...
22
PUMP BODY ECH-P004003230
...
23
SCREW ECH-P004001030
...
20087-81531
PURGE PUMP KIT ECH-P004002520
...
24
COVER, PUMP ECH-12437949930
...
25
GASKET ECH-P004002600
...
26
PLATE, PUMP ECH-12436049930
...
27
VALVE, CHECK ECH-P004002530
...
28
GASKET ECH-12435949930
...
29
SPRING ECH-P004002580
...
30
SPRING ECH-12435550130
...
31
VALVE, CHECK ECH-P004002590
...
32
BODY, PURGE ECH-P004002570
...
33
BULB, PURGE ECH-12438012710
...
34
RETAINER, PURGE BULB ECH-12434249930
...
35
SCREW ECH-12431049930
...
36
SCREW 3x20 ECH-90024103020
...
37
CAP, DUST ECH-P004002180
...
38
ADJUSTER, CABLE ECH-12415846630
...
39
NUT, LOCK ECH-12411105810
...
40
PIPE, CABLE ADJUSTER ECH-P004002870
...
41
CARBURETOR ECH-A021002500
...
42
VALVE, SLIDE ECH-P004002900
...
99909-305
GASKET / DIAPHRAGM KIT ECH-P050009190
...
...
...
...
...
