Echo C35 Brushcutter

Model: C35

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

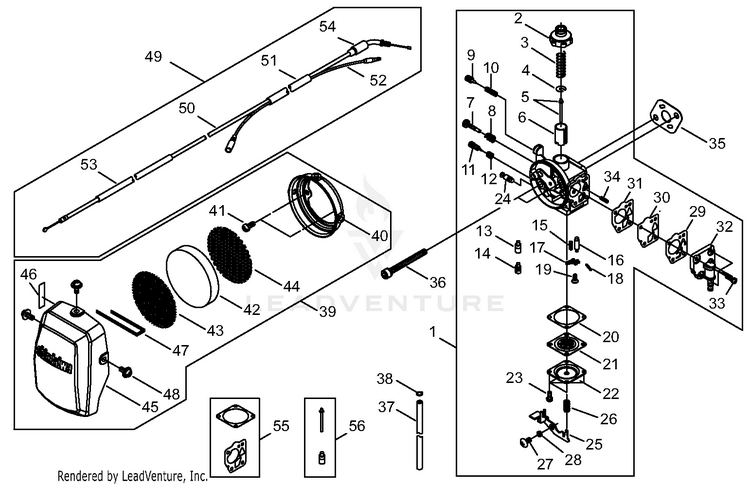

Carburetor / Air Filter

...
...
1
CARBURETOR 20011-81021 ECH-A021003490
...
2
CAP, THROTTLE 20000-81130 ECH-P004003400
...
3
SPRING 20011-81140 ECH-P004000440
...
4
WASHER, SPRING SUPPORT 20000-81150 ECH-12411505530
...
5
NEEDLE, JET 20000-81170 ECH-P004003390
...
6
VALVE, THROTTLE 20011-81182 ECH-P004001260
...
7
SCREW, IDLE ADJUST 20000-81310 ECH-12415905530
...
8
SPRING 20000-81320 ECH-12433305630
...
9
SCREW, SLOW AIR 20000-81330 ECH-P004000880
...
10
SPRING 20000-81340 ECH-P004000890
...
11
SCREW, MAIN ADJUST 20011-81351 ECH-P004001300
...
12
SPRING 20011-81360 ECH-12435521330
...
13
JET, MAIN 20011-81410 ECH-P004001310
...
14
HOLDER, MAIN JET 20011-81420 ECH-P004001320
...
15
SPRING 20011-81430 ECH-12433121330
...
16
VALVE, INLET NEEDLE 20000-81441 ECH-P004000930
...
17
LEVER, METERING 20011-81451 ECH-P004001340
...
18
PIN, METERING LEVER 20011-81460 ECH-12433221330
...
19
SCREW M3x8 20011-81470 ECH-P004001350
...
20
GASKET, METERING DIAPHRAGM 20011-81510 ECH-12435821330
...
21
DIAPHRAGM, METERING 20011-81520 ECH-12434122830
...
22
COVER, DIAPHRAGM 20011-81530 ECH-12432421330
...
23
SCREW M3x8 20000-81540 ECH-P004001000
...
24
VALVE, OVERFLOW 20011-81550 ECH-P004001360
...
25
LEVER, TICKLER 20011-81563 ECH-P004001370
...
26
SPRING 20011-81573 ECH-P004001400
...
27
SCREW 20011-81581 ECH-P004001410
...
28
COLLAR 20011-81590 ECH-P004001420
...
29
VALVE, PUMP 20020-81660 ECH-P004001880
...
30
DIAPHRAGM, METERING 20011-81621 ECH-P004001430
...
31
GASKET, DIAPHRAGM 20011-81630 ECH-12436321330
...
32
BODY, PUMP 20011-81641 ECH-P004001440
...
33
SCREW 20000-81650 ECH-P004001030
...
34
SPRING, COIL 20011-81680 ECH-12436721330
...
35
GASKET, CARBURETOR 20011-83411 ECH-V103000960
...
36
BOLT M5x50 11020-05500 ECH-V203000850
...
37
PIPE, FUEL 20000-83312 ECH-V471002630
...
38
CLIP 6 20020-85540 ECH-V490000500
...
39
FILTER ASSY, AIR 20010-81701 ECH-A027000090
...
40
CASE, AIR FILTER 20010-81711 ECH-A225000500
...
41
SCREW 20000-81730 ECH-V252000220
...
42
FILTER, AIR 20000-81740 ECH-A226000670
...
43
SCREEN - FRONT 20000-81750 ECH-A230000030
...
44
SCREEN, REAR 20010-81760 ECH-A230000040
...
45
COVER, AIR FILTER 20010-81771 ECH-A232000870
...
46
LABEL - CHOKE 19404-00008 ECH-X506000130
...
47
CLIP, FILTER RETAINING 20010-81781 ECH-A238000060
...
48
SCREW 4 20000-81735 ECH-V252000230
...
49
THROTTLE CONTROL ASSY 20011-83100 ECH-V043000490
...
50
CABLE, THROTTLE 20011-83110 ECH-V430002870
...
51
TUBE, PROTECTIVE 20011-83120 ECH-V475004740
...
52
LEAD - GROUND 20011-83130 ECH-V485001620
...
53
TUBE, THROTTLE CABLE 20011-83140 ECH-V475004750
...
54
CAP, CARBURETOR 20005-83160 ECH-A246000020
...
55
GASKET KIT 20011-81910 ECH-P050009220
...
56
NEEDLE KIT, JET 70012-98030 ECH-P050009270
...
...
...
...
...
