Echo C35 Brushcutter

Model: C35

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

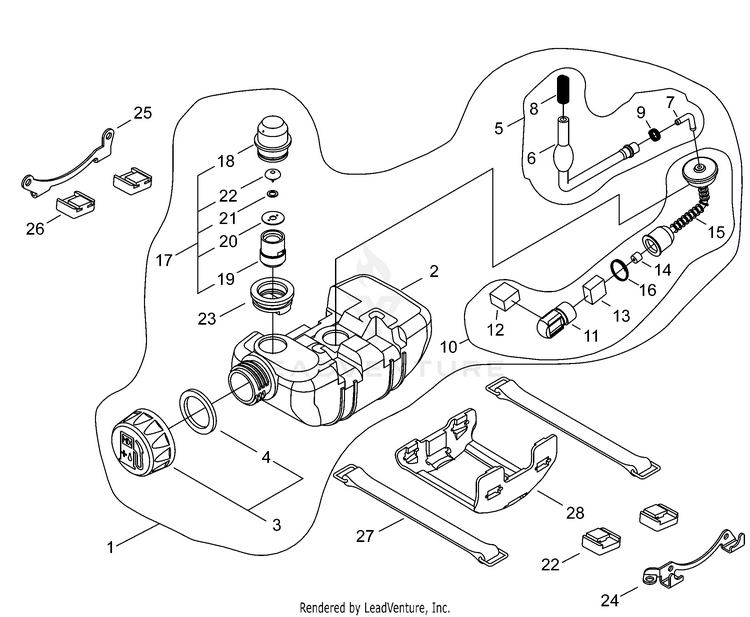

FUEL TANK

...
...
1
FUEL TANK ASSY 20011-85002 ECH-P021017872
...
2
TANK, FUEL 20011-85112 ECH-A350001321
...
3
CAP ASSY, FUEL 70043-85201 ECH-A033000070
...
4
GASKET, FUEL CAP 20000-85221 ECH-V107000010
...
5
PIPE ASSY, FUEL 20000-85303 ECH-P021017770
...
6
PIPE 20000-85313 ECH-V470002240
...
7
CONNECTOR, PIPE 20000-85321 ECH-V186000220
...
8
CLAMP 20000-85340 ECH-V451000850
...
9
CLIP 20000-85350 ECH-V490000610
...
10
FILTER ASSY, FUEL 20011-85401 ECH-A037000000
...
11
WEIGHT 22100-85411 ECH-A369000030
...
12
FILTER, FUEL - A 22100-85420 ECH-A368000020
...
13
FILTER, FUEL - B 22100-85431 ECH-A368000030
...
14
VALVE, CHECK 20000-85440 ECH-A356000080
...
15
PIPE, FUEL 20011-85451 ECH-V470001110
...
16
CLIP 22102-85440 ECH-V490000590
...
17
BREATHER ASSY 20000-85500 ECH-A039000021
...
18
CAP, VENT 20000-85511 ECH-A362000000
...
19
HOLDER, VENT 20000-85521 ECH-A358000030
...
20
RETAINER 22100-85240 ECH-A359000010
...
21
WASHER 22100-85250 ECH-V303000170
...
22
VENT ASSY 22100-85260 ECH-A356000090
...
23
GROMMET, VENT 20000-85579 ECH-V138000020
...
24
BRACKET S 20021-86110 ECH-A393000180
...
25
BRACKET M 20011-86120 ECH-A393000190
...
26
CUSHION, FUEL TANK 20010-86130 ECH-V420002390
...
27
STRAP, FUEL TANK 20020-86140 ECH-A392000060
...
28
GUARD, FUEL TANK 70005-86131 ECH-A175000200
...
...
...
...
...
