Echo C35 Brushcutter

Model: C35

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

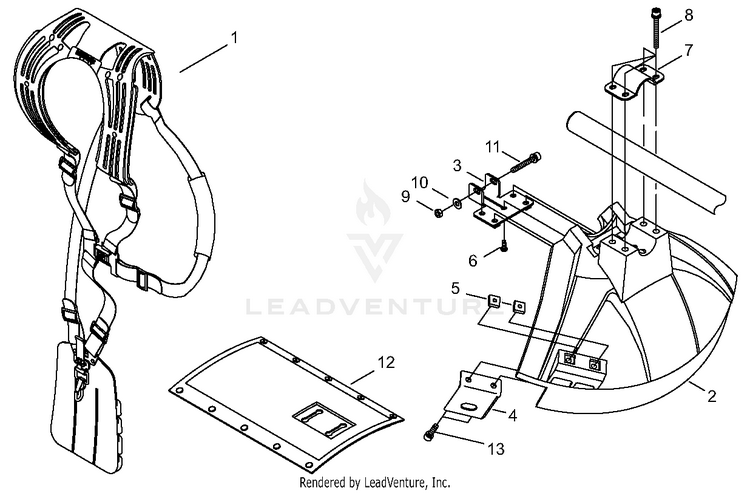

Debris Shield, Harness

...
...
1
HARNESS ASSY 64007-67011 ECH-C062000430
...
2
SHIELD, DEBRIS 72480-16113 ECH-C550000391
...
3
CLAMP, LOWER 72017-16130 ECH-C551000110
...
4
CUTTER 72480-16121 ECH-C554000040
...
5
NUT M5 22420-16120 ECH-V263000130
...
6
SCREW HILO 4x10 11202-40100 ECH-V252000240
...
7
CLAMP, UPPER 72480-16210 ECH-C551000060
...
8
BOLT M5x45 11022-05450 ECH-V203000610
...
9
NUT, HEX M6 01500-06051 ECH-90050000006
...
10
WASHER 01613-06100 ECH-90063000006
...
11
BOLT M6x40 11022-06400 ECH-V204000450
...
12
PROTECTOR 22017-17110 ECH-V420002480
...
13
BOLT 5x16 11020-05160 ECH-9112205016
...
...
...
...
...
