Echo C35 Brushcutter

Model: C35

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

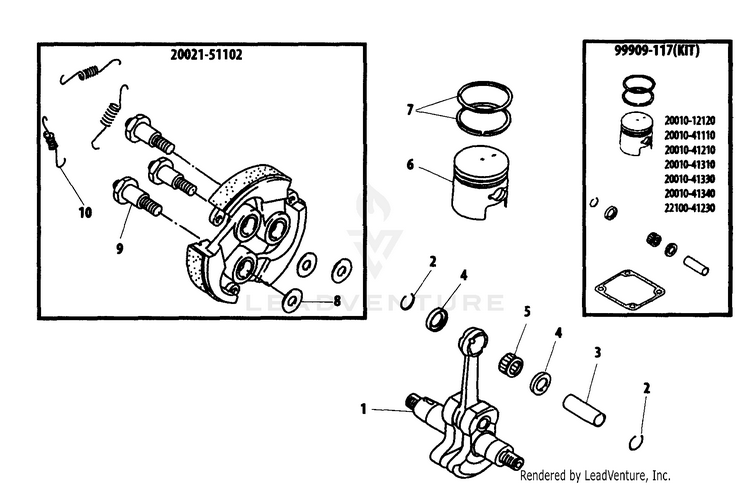

Clutch, Piston

...
...
1
CRANKSHAFT ASSY ECH-A011000860
...
99909-117
PISTON KIT ECH-P021031560
...
2
RING, SNAP ECH-V580000110
...
3
PIN, PISTON 10 ECH-V608000060
...
4
WASHER, THRUST ECH-V307000220
...
5
BEARING, NEEDLE 10 ECH-V555000090
...
6
PISTON SET ECH-P021031570
...
7
RING, PISTON See "Cylinder" illustration and parts list. ECH-A101000380
...
xx
GASKET, CYLINDER ECH-V100000470
...
20021-51102
CLUTCH ASSY ECH-P021017990
...
8
WASHER 6 MM ECH-V304000150
...
9
BOLT, CLUTCH ECH-A557000100
...
10
SPRING, CLUTCH ECH-A566000130
...
...
...
...
...
