Echo C35 Brushcutter

Model: C35

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

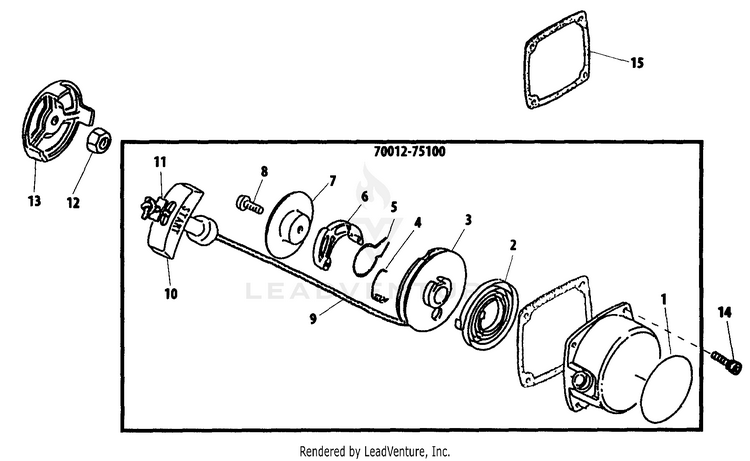

Starter

...
...
70012-75100
STARTER ASSY, RECOIL ECH-A051002240
...
1
LABEL - TRADE ECH-X504002510
...
2
SPRING, RECOIL ECH-A504000120
...
3
REEL, ROPE ECH-A506000250
...
4
SPRING, RETURN ECH-V452000560
...
5
SPRING, FRICTION ECH-V452000550
...
6
RATCHET ECH-A514000130
...
7
PLATE, FRICTION ECH-A518000050
...
8
SCREW ECH-V253000470
...
9
ROPE, STARTER 3x800 ECH-17722661830
...
10
GRIP, STARTER ECH-17722827030
...
11
RETAINER, ROPE ECH-P022037670
...
12
NUT M8xH5 ECH-V265000170
...
13
PULLEY, STARTER ECH-A520000172
...
14
BOLT M4x16 ECH-V202000581
...
15
GASKET, RECOIL ECH-V105000011
...
...
...
...
...
